SKU: UCPA205-SNR

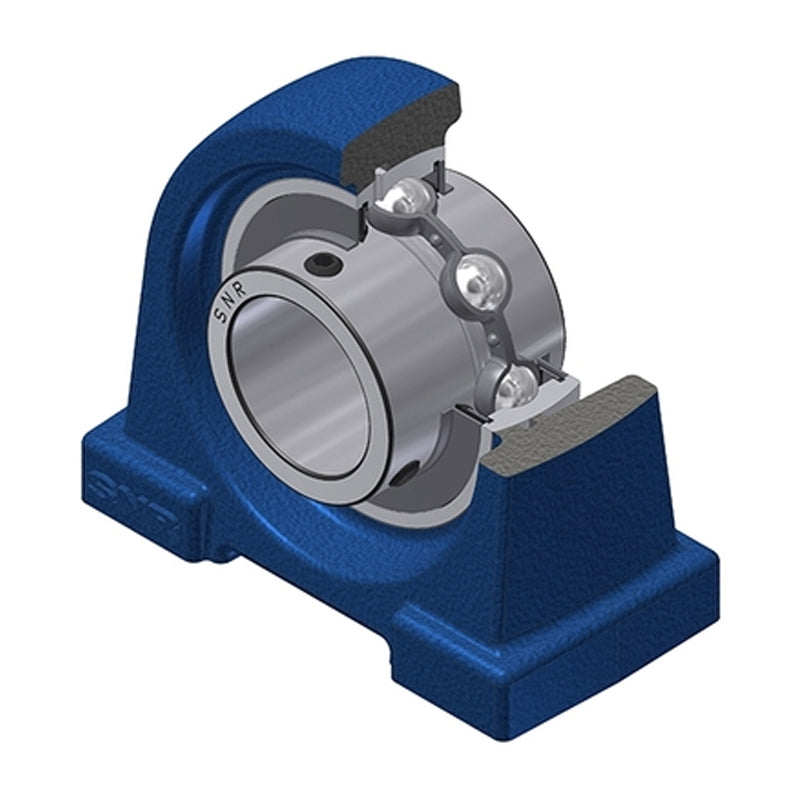

SNR UCPA205 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 25mm Bore Insert - Allow 2-3 Days
- Regular price
- €34.52 ex VAT
- Sale price
- €34,52
- Regular price
-
Not in stock
Quantity Price Breaks
3
€30.72
4
€29.00
9
€28.65
19
€28.31
49
€27.96
99
€27.62
499
€25.89
999
€25.54
1999
€25.20
2999
€24.85
4999
€24.16
SKU:
UCPA205-SNR
SNR UCPA205 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 25mm Bore Insert - Allow 2-3 Days
- Regular price
- €34.52 ex VAT
- Sale price
- €34,52
- Regular price
-
Description
|
UCPA/UCPAE Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 25mm |
| A | = | 38mm |
| A1 | = | 23mm |
| B | = | 34mm |
| E | = | 15mm |
| H | = | 36.5mm |
| H1 | = | 12mm |
| H2 | = | 72mm |
| J | = | 56mm |
| L | = | 84mm |
| L1 | = | 27mm |
| N | = | M10 |
| S | = | 14.3mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 14 kN |
| Static load C0 | = | 7.88 kN |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| --- | = | Unit information |
| Recommended tightening torque for set screw | = | 5.5 Nm |
| Mass | = | 0.71 kg |
