SKU: UCPA208-SNR

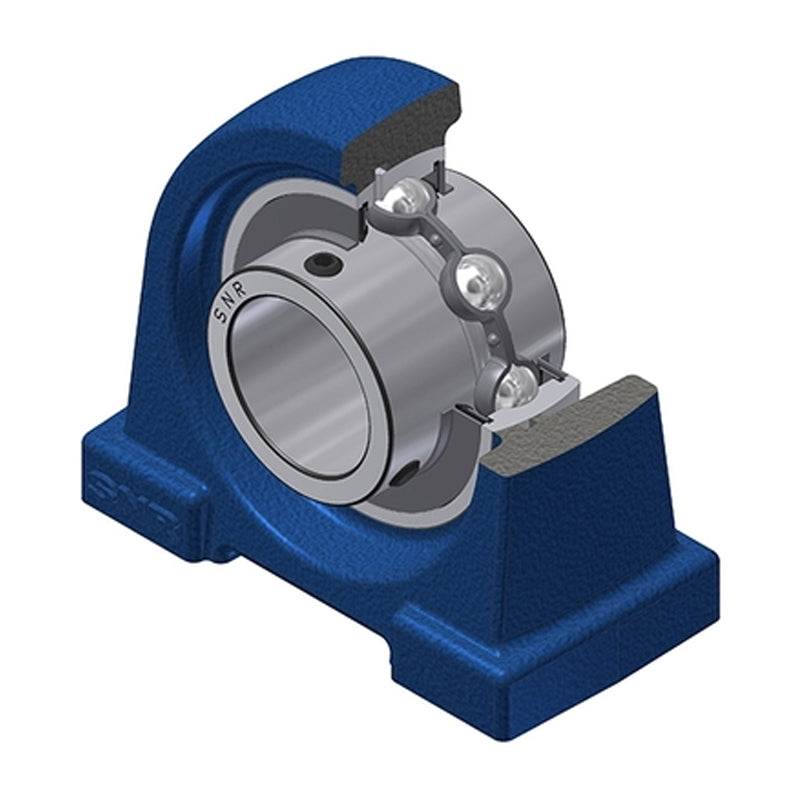

SNR UCPA208 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 40mm Bore Insert
- Regular price
- €50.14 ex VAT
- Sale price
- €50,14
- Regular price
-
In stock
Quantity Price Breaks
3
€44.62
4
€42.12
9
€41.62
19
€41.11
49
€40.61
99
€40.11
499
€37.61
999
€37.10
1999
€36.60
2999
€36.10
4999
€35.10
SKU:
UCPA208-SNR
SNR UCPA208 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 40mm Bore Insert
- Regular price
- €50.14 ex VAT
- Sale price
- €50,14
- Regular price
-
Description
|
UCPA/UCPAE Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 40mm |
| A | = | 54mm |
| A1 | = | 28mm |
| B | = | 49.2mm |
| E | = | 20mm |
| H | = | 49.2mm |
| H1 | = | 13mm |
| H2 | = | 100mm |
| J | = | 84mm |
| L | = | 116mm |
| L1 | = | 32mm |
| N | = | M14 |
| S | = | 19mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 29.6 kN |
| Static load C0 | = | 18.2 kN |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| --- | = | Unit information |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 1.74 kg |
