SKU: UCPA209-SNR

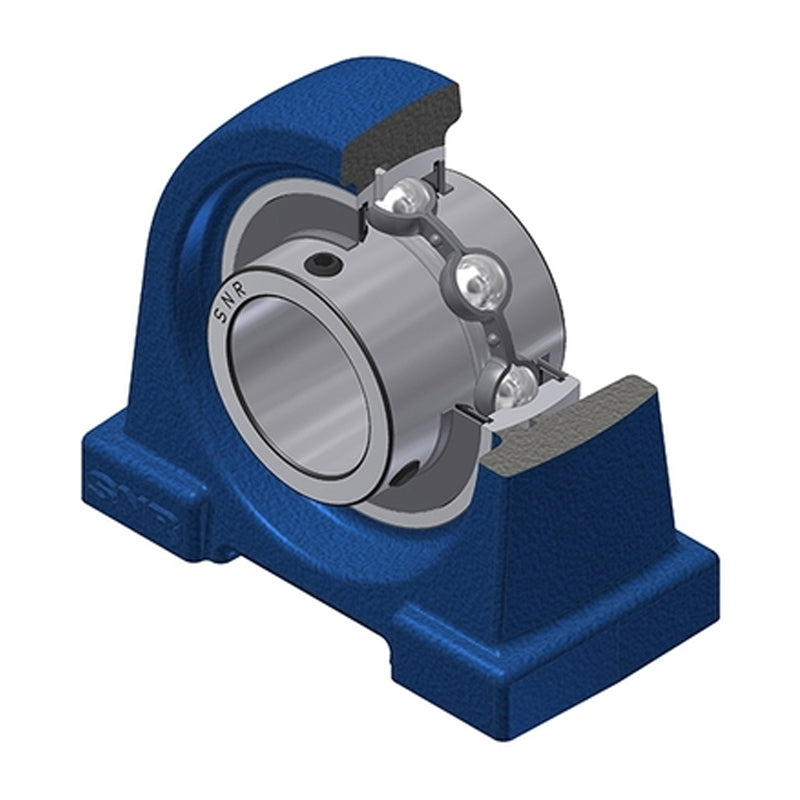

SNR UCPA209 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 45mm Bore Insert - Allow 2-3 Days
- Regular price
- €56.68 ex VAT
- Sale price
- €56,68
- Regular price
-
Not in stock
Quantity Price Breaks
3
€50.45
4
€47.61
9
€47.04
19
€46.48
49
€45.91
99
€45.34
499
€42.51
999
€41.94
1999
€41.38
2999
€40.81
4999
€39.68
SKU:
UCPA209-SNR
SNR UCPA209 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 45mm Bore Insert - Allow 2-3 Days
- Regular price
- €56.68 ex VAT
- Sale price
- €56,68
- Regular price
-
Description
|
UCPA/UCPAE Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 45mm |
| A | = | 60mm |
| A1 | = | 32mm |
| B | = | 49.2mm |
| E | = | 25mm |
| H | = | 54.2mm |
| H1 | = | 13mm |
| H2 | = | 108mm |
| J | = | 90mm |
| L | = | 120mm |
| L1 | = | 42mm |
| N | = | M14 |
| S | = | 19mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 31.85 kN |
| Static load C0 | = | 20.8 kN |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| --- | = | Unit information |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 2.18 kg |
