SKU: UCPAE204-12-SNR

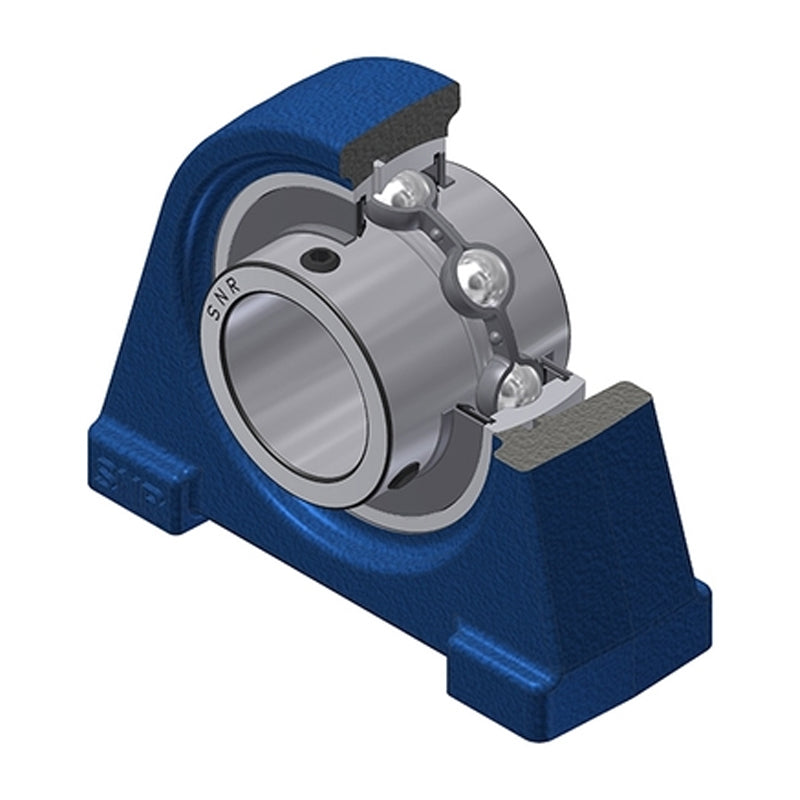

SNR UCPAE204-12 Threaded Base Small Footprint Imperial Pillow / Plummer Block Housing Supplied with 3/4 inch Bore Insert
- Regular price
- €31.49 ex VAT
- Sale price
- €31,49
- Regular price
-
In stock
Quantity Price Breaks
3
€28.03
4
€26.45
9
€26.14
19
€25.82
49
€25.51
99
€25.19
499
€23.62
999
€23.30
1999
€22.99
2999
€22.67
4999
€22.04
SKU:
UCPAE204-12-SNR
SNR UCPAE204-12 Threaded Base Small Footprint Imperial Pillow / Plummer Block Housing Supplied with 3/4 inch Bore Insert
- Regular price
- €31.49 ex VAT
- Sale price
- €31,49
- Regular price
-
Description
|
UCPA/UCPAE Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 3/4 inch |
| A | = | 32mm |
| A1 | = | 19mm |
| B | = | 31mm |
| E | = | 10mm |
| H | = | 33.3mm |
| H1 | = | 9mm |
| H2 | = | 64mm |
| J | = | 50.8mm |
| L | = | 65mm |
| L1 | = | 18mm |
| N | = | M8 |
| S | = | 12.7mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 12.8 kN |
| Static load C0 | = | 6.65 kN |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| --- | = | Unit information |
| Recommended tightening torque for set screw | = | 3.7 Nm |
| Mass | = | 0.47 kg |
