SKU: UCPAE210-SNR

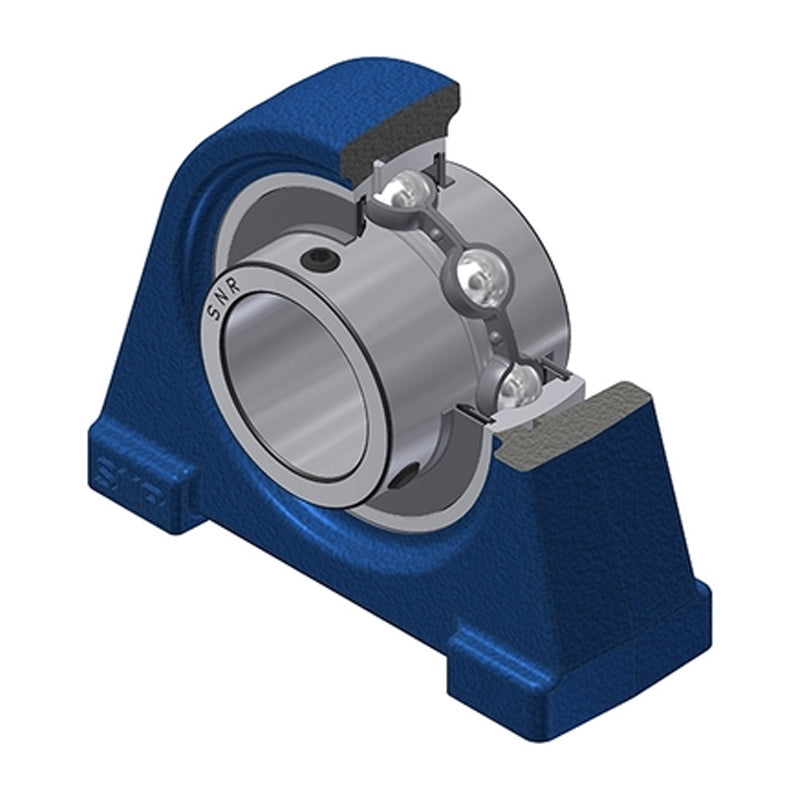

SNR UCPAE210 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 50mm Bore Insert
SNR UCPAE210 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 50mm Bore Insert
Regular price
€54,19
ex VAT
Regular price
Sale price
€54,19
ex VAT
In stock
Price Break
3+
€41,18
4+
€38,86
9+
€38,40
19+
€37,94
49+
€37,48
99+
€37,01
499+
€34,70
999+
€34,24
1999+
€33,78
2999+
€33,31
4999+
€32,39
Quantity
Couldn't load pickup availability
Description
Description
|
UCPA/UCPAE Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- UCPAE
- Bolt Hole Centres:
- 101.6mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 50mm |
| A | 54mm |
| A1 | 34mm |
| B | 51.6mm |
| E | 20mm |
| H | 57.2mm |
| H1 | 15mm |
| H2 | 115mm |
| J | 101.6mm |
| L | 135mm |
| L1 | 33.5mm |
| N | M16 |
| S | 19mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| --- | Unit information |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 2.5 kg |
