SKU: UCPE211-35-SNR

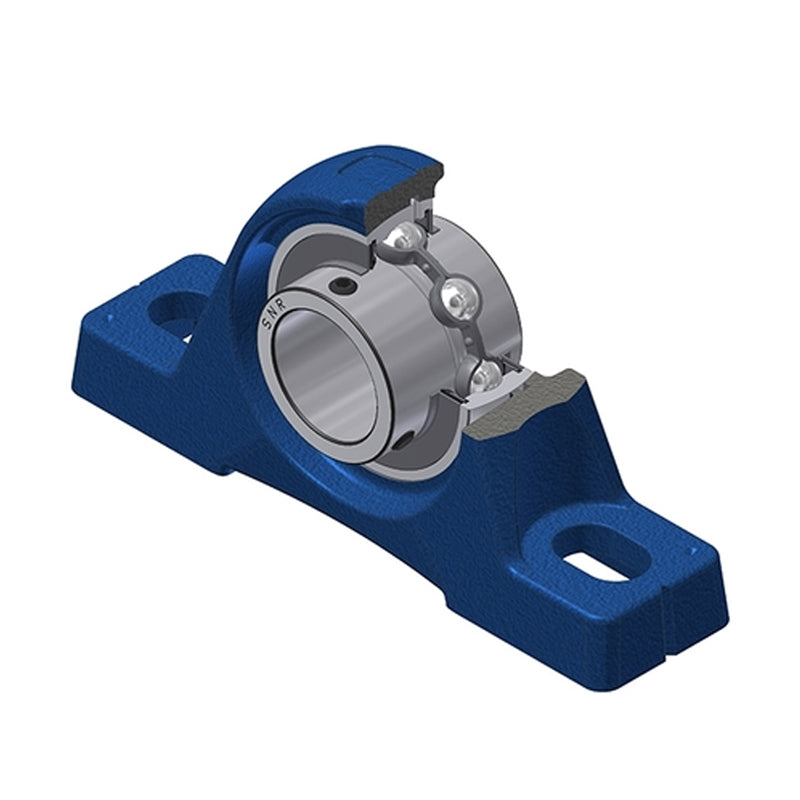

SNR UCPE211-35 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-3/16 inch Bore Insert - Allow 2-3 Days
SNR UCPE211-35 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-3/16 inch Bore Insert - Allow 2-3 Days
Regular price
€63,22
ex VAT
Regular price
Sale price
€63,22
ex VAT
In stock
Price Break
3+
€48,04
4+
€45,34
9+
€44,80
19+
€44,26
49+
€43,72
99+
€43,18
499+
€40,48
999+
€39,94
1999+
€39,40
2999+
€38,86
4999+
€37,78
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCPE/UCPEX Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 55.56mm = 2.187 (2-3/16) inch
- Style:
- UCPE
- Bolt Hole Centres:
- 176mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 2-3/16mm |
| A | 60mm |
| A1 | 35mm |
| B | 55.6mm |
| H | 63.5mm |
| H1 | 22.5mm |
| H2 | 124.5mm |
| J | 176mm |
| L | 222mm |
| L1 | 68mm |
| N | 18mm |
| N1 | 30mm |
| S | 22.2mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 43.55 kN |
| Static load C0 | 29.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 16.8 Nm |
| Mass | 3.4 kg |
