SKU: UCPE215-47-SNR

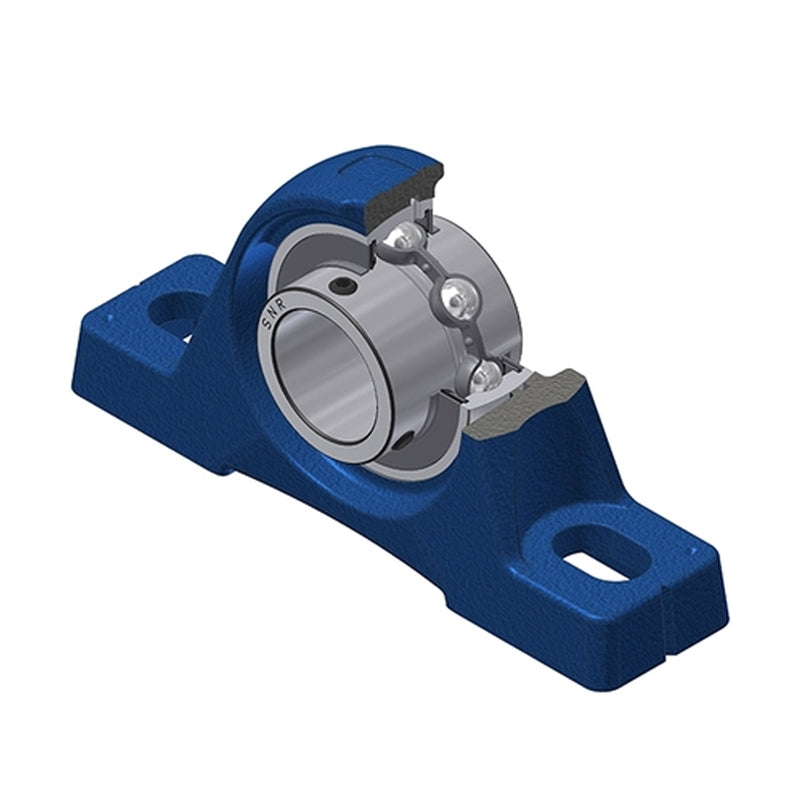

SNR UCPE215-47 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-15/16 inch Bore Insert - Allow 2-3 Days
SNR UCPE215-47 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-15/16 inch Bore Insert - Allow 2-3 Days
Regular price
€135,46
ex VAT
Regular price
Sale price
€135,46
ex VAT
In stock
Price Break
3+
€102,94
4+
€97,16
9+
€96,00
19+
€94,85
49+
€93,69
99+
€92,53
499+
€86,75
999+
€85,59
1999+
€84,44
2999+
€83,28
4999+
€80,97
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCPE/UCPEX Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 74.61mm = 2.937 (2-15/16) inch
- Style:
- UCPE
- Bolt Hole Centres:
- 210mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 2-15/16mm |
| A | 66mm |
| A1 | 48mm |
| B | 77.8mm |
| H | 82.5mm |
| H1 | 27.5mm |
| H2 | 164mm |
| J | 210mm |
| L | 265mm |
| L1 | 78mm |
| N | 22mm |
| N1 | 30mm |
| S | 33.3mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 66 kN |
| Static load C0 | 49.5 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 27.1 Nm |
| Mass | 7 kg |
