SKU: UCPE218-SNR

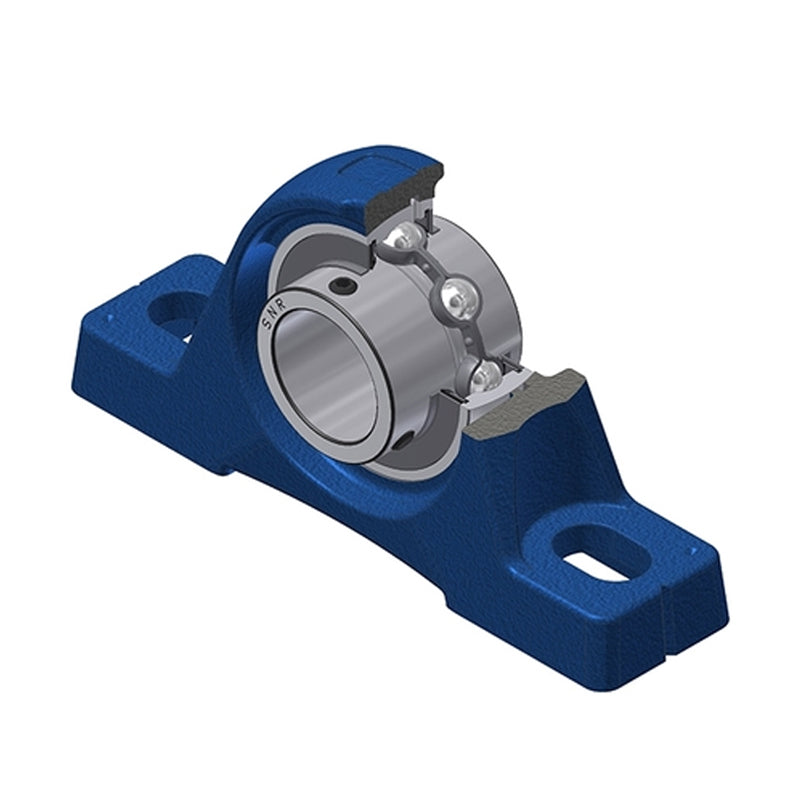

SNR UCPE218 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 90mm Bore Insert - Allow 2-3 Days
SNR UCPE218 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 90mm Bore Insert - Allow 2-3 Days
Regular price
€252,80
ex VAT
Regular price
Sale price
€252,80
ex VAT
In stock
Price Break
3+
€192,12
4+
€181,32
9+
€179,17
19+
€177,01
49+
€174,85
99+
€172,69
499+
€161,90
999+
€159,74
1999+
€157,58
2999+
€155,42
4999+
€151,10
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCPE/UCPEX Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 90mm
- Style:
- UCPE
- Bolt Hole Centres:
- 268mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 90mm |
| A | 85mm |
| A1 | 55mm |
| B | 96mm |
| H | 101.6mm |
| H1 | 35mm |
| H2 | 200mm |
| J | 268mm |
| L | 330mm |
| L1 | 99mm |
| N | 27mm |
| N1 | 35mm |
| S | 39.7mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 96 kN |
| Static load C0 | 71.5 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 33 Nm |
| Mass | 13.55 kg |
