SKU: UCSP204-SNR

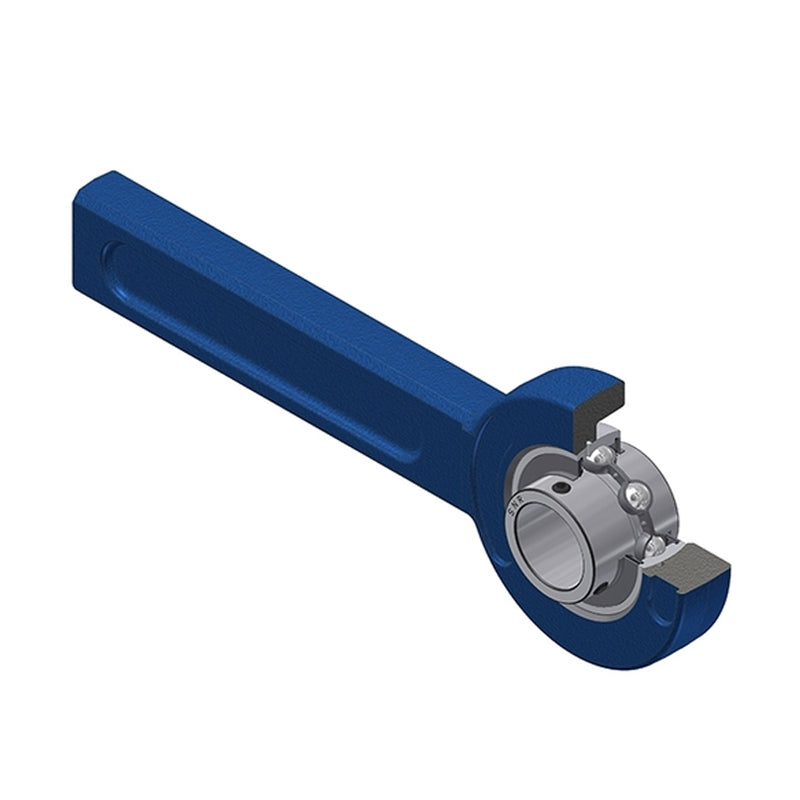

SNR UCSP204 Metric Cast Iron Tensioner Unit with 20mm Bore Insert - Allow 2-3 Days
- Regular price
- €41.42 ex VAT
- Sale price
- €41,42
- Regular price
-
Not in stock
Quantity Price Breaks
3
€36.86
4
€34.79
9
€34.38
19
€33.96
49
€33.55
99
€33.14
499
€31.07
999
€30.65
1999
€30.24
2999
€29.82
4999
€28.99
SKU:
UCSP204-SNR
SNR UCSP204 Metric Cast Iron Tensioner Unit with 20mm Bore Insert - Allow 2-3 Days
- Regular price
- €41.42 ex VAT
- Sale price
- €41,42
- Regular price
-
Description
UCSP200 Series Cast Iron Tensioner Units: These bearing units are supplied with a fully sealed bearing insert fitted in the tensioner housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical

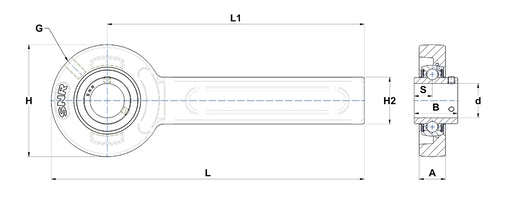

| --- | = | Dimensions |
| Shaft diameter | = | 20mm |
| A | = | 21mm |
| B | = | 31mm |
| H | = | 78mm |
| H2 | = | 41mm |
| L | = | 264mm |
| L1 | = | 225mm |
| S | = | 12.7mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 12.8 kN |
| Static load C0 | = | 6.65 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Stretcher frame 2 | = | SPR11 |
| Stretcher frame 3 | = | SPR12 |
| Stretcher frame 4 | = | SPR14 |
| Mass | = | 1.57 kg |
