SKU: UCT306-101D1-NTN

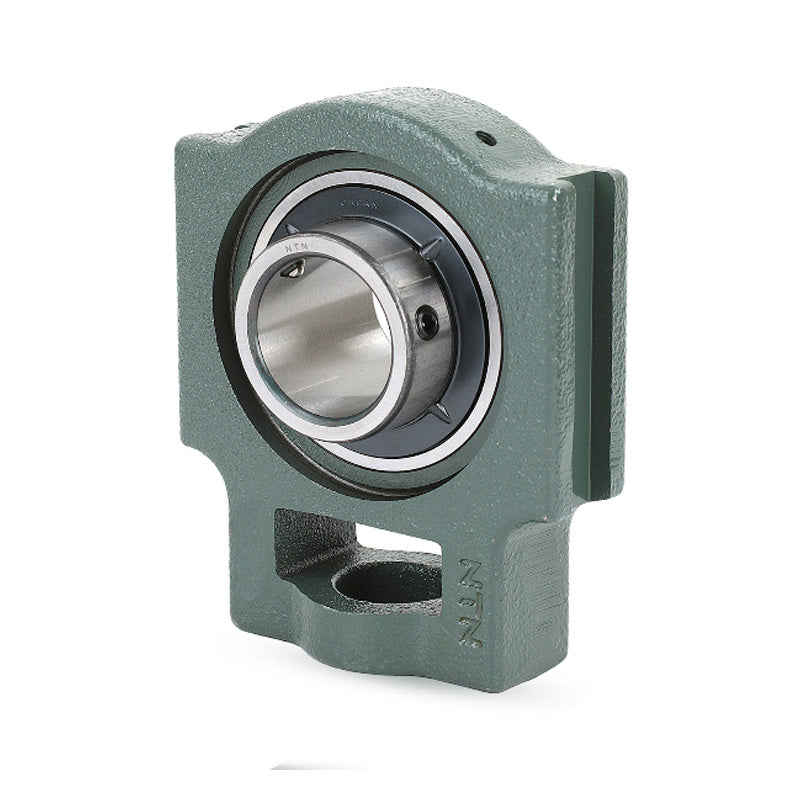

NTN UCT306-101D1 Imperial Cast Iron Take Up Unit with 1-1/16 inch Bore Bearing Unit - Allow 2-3 Days
NTN UCT306-101D1 Imperial Cast Iron Take Up Unit with 1-1/16 inch Bore Bearing Unit - Allow 2-3 Days
Out of stock
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 26.99mm = 1.063 (1-1/16) inch
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 1-1/16 inch |
| N<sub>1</sub> | 23/32 inch |
| L<sub>2</sub> | 5/8 inch |
| H<sub>2</sub> | 2-3/4 inch |
| N<sub>2</sub> | 1-5/8 inch |
| N | 1-3/32 inch |
| L<sub>3</sub> | 2-29/32 inch |
| A<sub>1</sub> | 0.63 inch |
| H<sub>1</sub> | 3-35/64 inch |
| H | 3-15/16 inch |
| L | 5-13/32 inch |
| A<sub>2</sub> | 1-3/32 inch |
| A | 1-5/8 inch |
| r | 2-1/16 inch |
| L<sub>1</sub> | 3-11/32 inch |
| B | 1.6929 inch |
| S | 0.669 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 29.5 kN |
| Static load C<sub>0r</sub> | 15 kN |
| Fatigue load limit C<sub>u</sub> | 1.14 kN |
| --- | Unit information |
| Mass | 4 lbs |
