SKU: UCT306-18

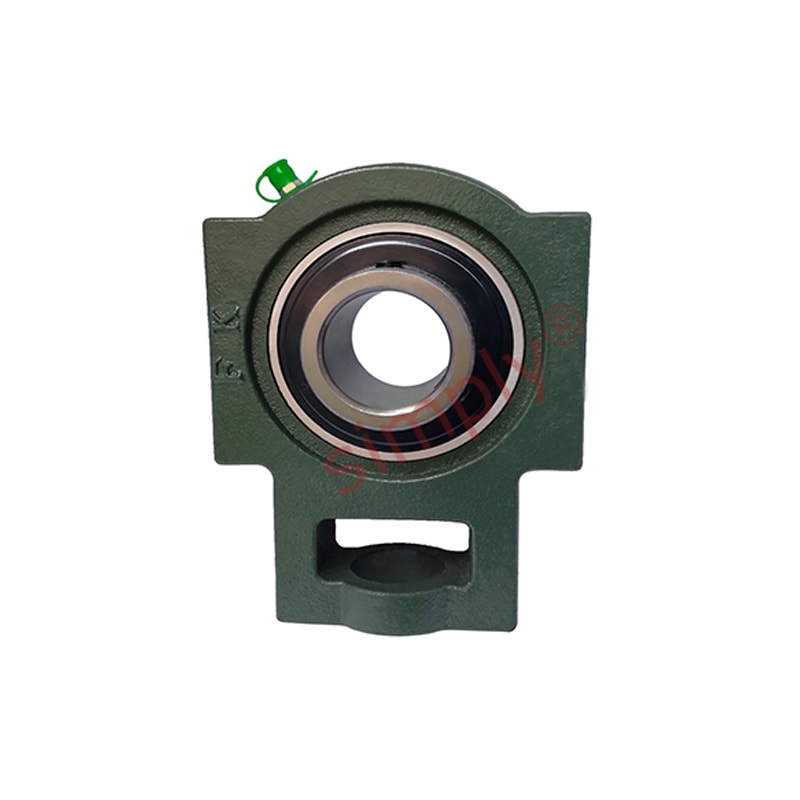

UCT306-18 Imperial Cast Iron Take Up Unit Housing with 1-1/8 inch Bore Insert
UCT306-18 Imperial Cast Iron Take Up Unit Housing with 1-1/8 inch Bore Insert
Out of stock
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Style:
- UCT
Technical
Technical
| d | 1-1/8 inch |
|---|---|
| o | 23/32 inch |
| g | 5/8 inch |
| p | 2-3/4 inch |
| q | 1-5/8 inch |
| s | 1-3/32 inch |
| b | 2-29/32 inch |
| k | 0.63 inch |
| e | 3-35/64 inch |
| a | 3-15/16 inch |
| w | 5-13/32 inch |
| j | 1-5/8 inch |
| l | 1-3/32 inch |
| h | 3-11/32 inch |
| B | 1.6929 inch |
| n | 0.669 inch |
| Bearing no | UC306-18 |
| Housing no | T306 |
| Weight | 1.7 kg |
