SKU: UCT307

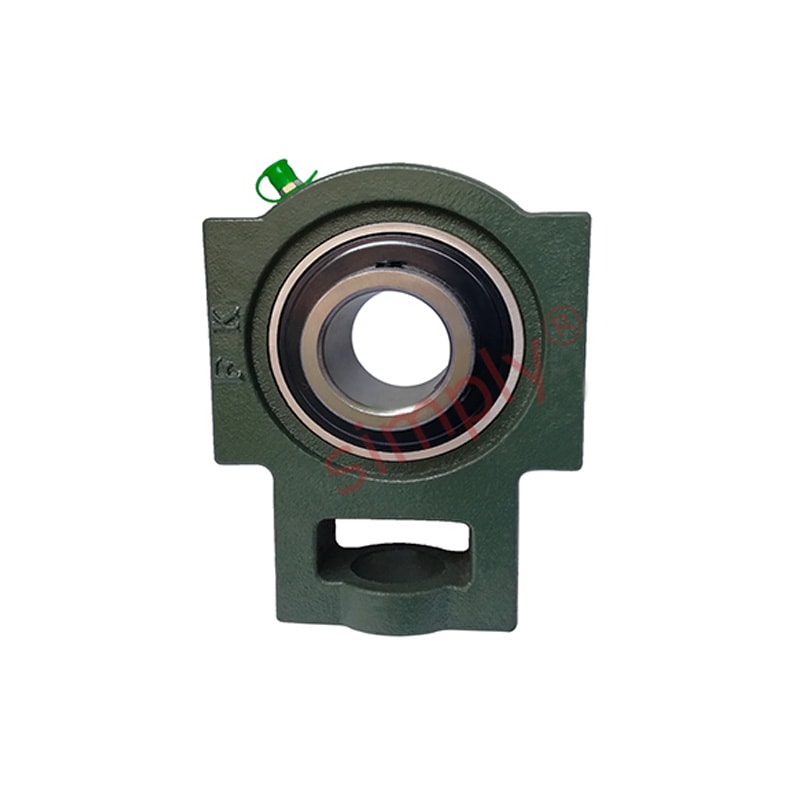

UCT307 Metric Cast Iron Take Up Unit Housing with 35mm Bore Insert
- Regular price
- €30.30 ex VAT
- Sale price
- €30,30
- Regular price
-
Not in stock
Quantity Price Breaks
3
€26.97
4
€25.45
9
€25.15
19
€24.85
49
€24.54
99
€24.24
499
€22.73
999
€22.42
1999
€22.12
2999
€21.82
4999
€21.21
SKU:
UCT307
UCT307 Metric Cast Iron Take Up Unit Housing with 35mm Bore Insert
- Regular price
- €30.30 ex VAT
- Sale price
- €30,30
- Regular price
-
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| d | = | 35mm |
| o | = | 20mm |
| g | = | 17mm |
| p | = | 75mm |
| q | = | 45mm |
| s | = | 30mm |
| b | = | 80mm |
| k | = | 16mm |
| e | = | 100mm |
| a | = | 111mm |
| w | = | 150mm |
| j | = | 45mm |
| l | = | 32mm |
| h | = | 94mm |
| B | = | 48mm |
| n | = | 19mm |
| Bearing no | = | UC307 |
| Housing no | = | T307 |
| Weight | = | 2.3 kg |
