SKU: UCT310-31

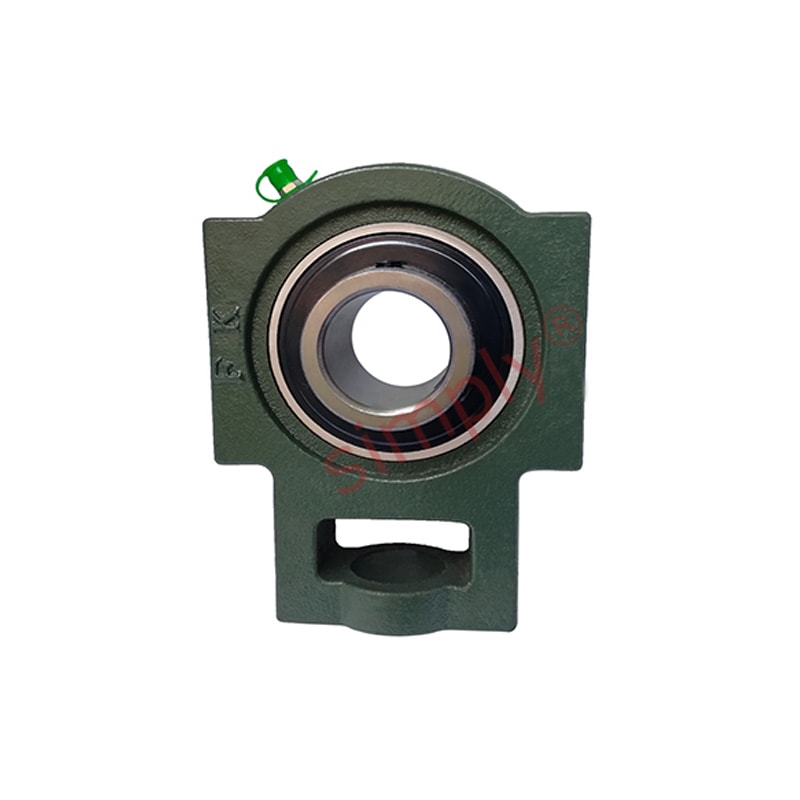

UCT310-31 Imperial Cast Iron Take Up Unit Housing with 1-15/16 inch Bore Insert
UCT310-31 Imperial Cast Iron Take Up Unit Housing with 1-15/16 inch Bore Insert
Out of stock
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 49.21mm = 1.937 (1-15/16) inch
- Style:
- UCT
Technical
Technical
| d | 1-15/16 inch |
|---|---|
| o | 1-1/16 inch |
| g | 7/8 inch |
| p | 3-27/32 inch |
| q | 2-13/32 inch |
| s | 1-15/32 inch |
| b | 4-3/16 inch |
| k | 0.787 inch |
| e | 5-33/64 inch |
| a | 5-15/16 inch |
| w | 7-9/16 inch |
| j | 2-13/32 inch |
| l | 1-9/16 inch |
| h | 4-21/32 inch |
| B | 2.4016 inch |
| n | 0.866 inch |
| Bearing no | UC310-31 |
| Housing no | T310 |
| Weight | 5 kg |
