SKU: UCT312-36

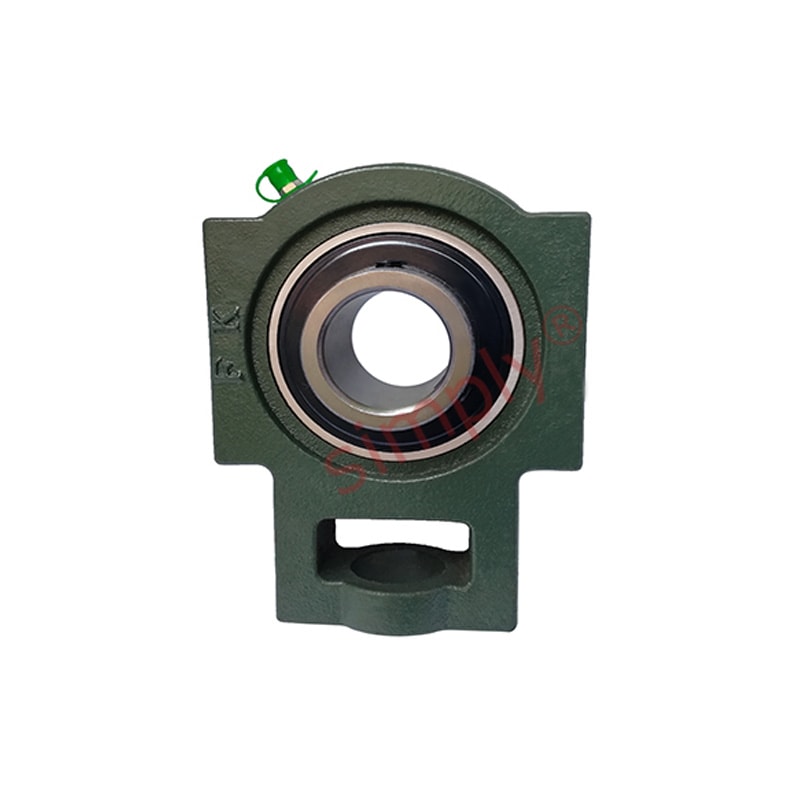

UCT312-36 Imperial Cast Iron Take Up Unit Housing with 2-1/4 inch Bore Insert
UCT312-36 Imperial Cast Iron Take Up Unit Housing with 2-1/4 inch Bore Insert
Out of stock
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 57.15mm = 2.25 (2-1/4) inch
- Style:
- UCT
Technical
Technical
| d | 2-1/4 inch |
|---|---|
| o | 1-7/32 inch |
| g | 31/32 inch |
| p | 4-7/16 inch |
| q | 2-25/32 inch |
| s | 1-5/8 inch |
| b | 4-27/32 inch |
| k | 0.866 inch |
| e | 6-19/64 inch |
| a | 7 inch |
| w | 8-21/32 inch |
| j | 2-25/32 inch |
| l | 1-13/16 inch |
| h | 5-5/16 inch |
| B | 2.7953 inch |
| n | 1.024 inch |
| Bearing no | UC313-36 |
| Housing no | T312 |
| Weight | 7.5 kg |
