SKU: UCT312D1-NTN

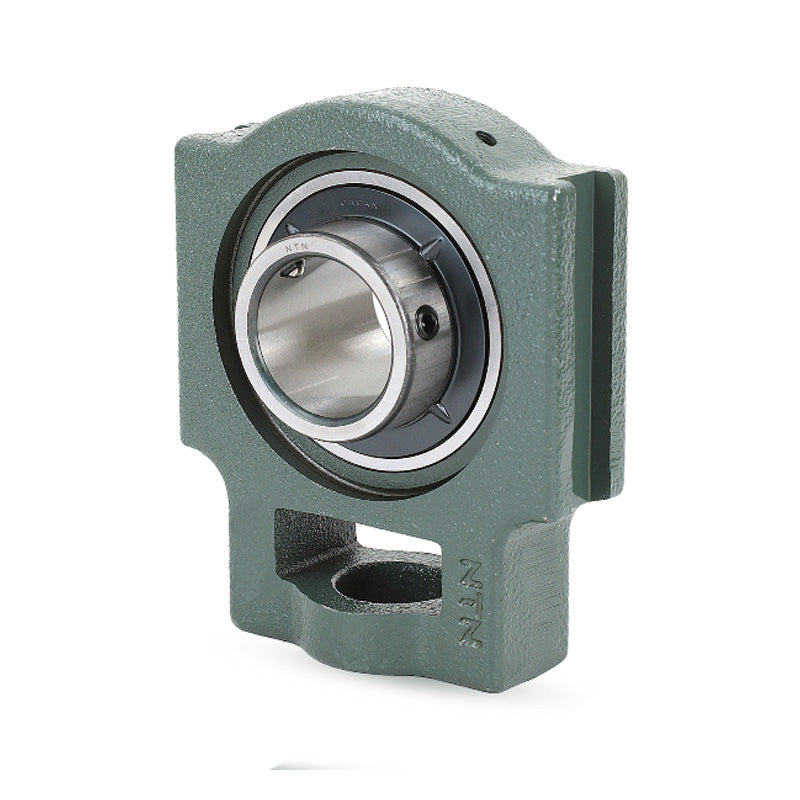

NTN UCT312D1 Metric Cast Iron Take Up Unit with 60mm Bore Bearing Unit - Allow 2-3 Days
- Regular price
- €139.88 ex VAT
- Sale price
- €139,88
- Regular price
-
Not in stock
Quantity Price Breaks
3
€124.49
4
€117.50
9
€116.10
19
€114.70
49
€113.30
99
€111.90
499
€104.91
999
€103.51
1999
€102.11
2999
€100.71
4999
€97.92
SKU:
UCT312D1-NTN
NTN UCT312D1 Metric Cast Iron Take Up Unit with 60mm Bore Bearing Unit - Allow 2-3 Days
- Regular price
- €139.88 ex VAT
- Sale price
- €139,88
- Regular price
-
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 60mm |
| N< | = | sub> |
| 1< | = | /sub> |
| = | 31mm | |
| L< | = | sub> |
| 2< | = | /sub> |
| = | 25mm | |
| H< | = | sub> |
| 2< | = | /sub> |
| = | 113mm | |
| N< | = | sub> |
| 2< | = | /sub> |
| = | 71mm | |
| N | = | 41mm |
| L< | = | sub> |
| 3< | = | /sub> |
| = | 123mm | |
| A< | = | sub> |
| 1< | = | /sub> |
| = | 22mm | |
| H< | = | sub> |
| 1< | = | /sub> |
| = | 160mm | |
| H | = | 178mm |
| L | = | 220mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 46mm | |
| A | = | 71mm |
| r | = | 85mm |
| L< | = | sub> |
| 1< | = | /sub> |
| = | 135mm | |
| B | = | 71mm |
| S | = | 26mm |
| --- | = | Load rating |
| Dynamic load C< | = | sub> |
| r< | = | /sub> |
| = | 90.5 kN | |
| Static load C< | = | sub> |
| 0r< | = | /sub> |
| = | 52 kN | |
| Fatigue load limit C< | = | sub> |
| u< | = | /sub> |
| = | 4.1 kN | |
| --- | = | Unit information |
| Mass | = | 76 kg |
