SKU: UCT315-45

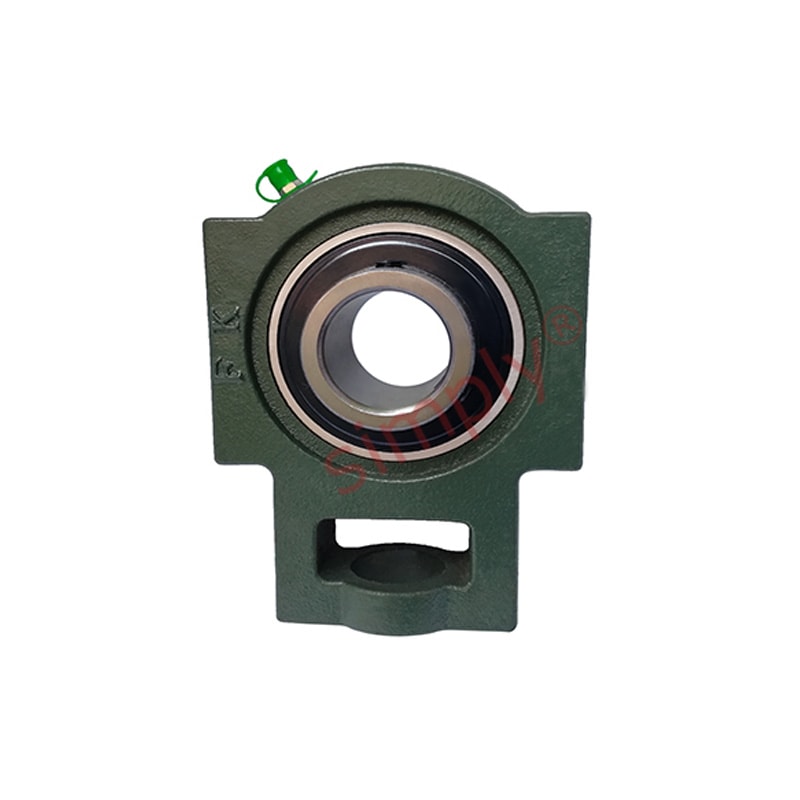

UCT315-45 Imperial Cast Iron Take Up Unit Housing with 2-13/16 inch Bore Insert
UCT315-45 Imperial Cast Iron Take Up Unit Housing with 2-13/16 inch Bore Insert
Out of stock
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 71.44mm = 2.813 (2-13/16) inch
- Style:
- UCT
Technical
Technical
| d | 2-13/16 inch |
|---|---|
| o | 1-13/32 inch |
| g | 1-1/16 inch |
| p | 5-3/16 inch |
| q | 3-11/32 inch |
| s | 1-13/16 inch |
| b | 5-29/32 inch |
| k | 1.024 inch |
| e | 7-9/16 inch |
| a | 8-1/2 inch |
| w | 10-5/16 inch |
| j | 3-17/32 inch |
| l | 2-5/32 inch |
| h | 6-5/16 inch |
| B | 3.2283 inch |
| n | 1.26 inch |
| Bearing no | UC315-45 |
| Housing no | T315 |
| Weight | 12.7 kg |
