SKU: UCT315-SNR
SNR UCT315 Metric Cast Iron Take Up Unit with 75mm Bore Bearing Unit - Allow 2-3 Days
- Regular price
- €216.00 ex VAT
- Sale price
- €216,00
- Regular price
-
Not in stock
Quantity Price Breaks
3
€192.24
4
€181.44
9
€179.28
19
€177.12
49
€174.96
99
€172.80
499
€162.00
999
€159.84
1999
€157.68
2999
€155.52
4999
€151.20
SKU:
UCT315-SNR
SNR UCT315 Metric Cast Iron Take Up Unit with 75mm Bore Bearing Unit - Allow 2-3 Days
- Regular price
- €216.00 ex VAT
- Sale price
- €216,00
- Regular price
-
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical

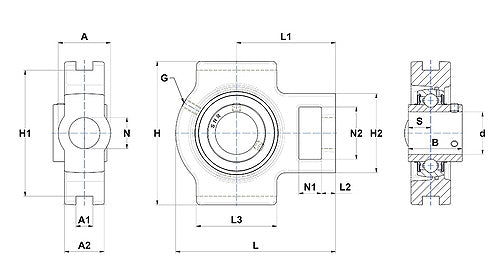

| --- | = | Dimensions |
| Shaft diameter d | = | 75mm |
| A | = | 90mm |
| A1 | = | 26mm |
| A2 | = | 55mm |
| B | = | 82mm |
| H | = | 216mm |
| H1 | = | 192mm |
| H2 | = | 132mm |
| L | = | 262mm |
| L1 | = | 160mm |
| L2 | = | 27mm |
| L3 | = | 150mm |
| N | = | 46mm |
| N1 | = | 36mm |
| N2 | = | 85mm |
| S | = | 32mm |
| G | = | M10x1 |
| --- | = | Load rating |
| Dynamic load C | = | 113.36 kN |
| Static load C0 | = | 76.8 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Mass | = | 12.53 kg |
