SKU: UCT318D1-NTN

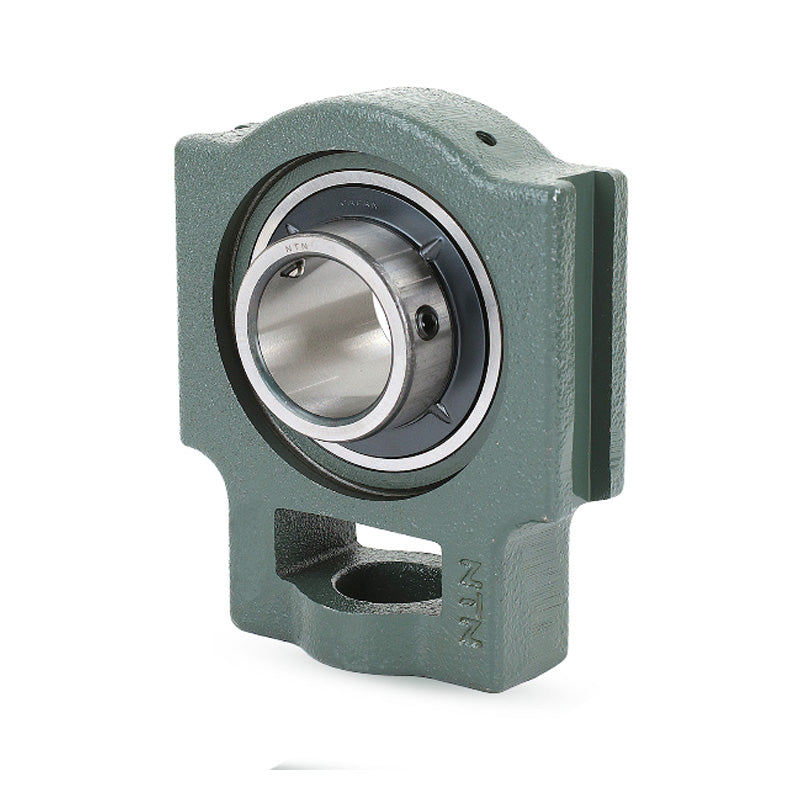

NTN UCT318D1 Metric Cast Iron Take Up Unit with 90mm Bore Bearing Unit - Allow 2-3 Days
- Regular price
- €340.68 ex VAT
- Sale price
- €340,68
- Regular price
-
Not in stock
Quantity Price Breaks
3
€303.21
4
€286.17
9
€282.76
19
€279.36
49
€275.95
99
€272.54
499
€255.51
999
€252.10
1999
€248.70
2999
€245.29
4999
€238.48
SKU:
UCT318D1-NTN
NTN UCT318D1 Metric Cast Iron Take Up Unit with 90mm Bore Bearing Unit - Allow 2-3 Days
- Regular price
- €340.68 ex VAT
- Sale price
- €340,68
- Regular price
-
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 90mm |
| N< | = | sub> |
| 1< | = | /sub> |
| = | 46mm | |
| L< | = | sub> |
| 2< | = | /sub> |
| = | 32mm | |
| H< | = | sub> |
| 2< | = | /sub> |
| = | 160mm | |
| N< | = | sub> |
| 2< | = | /sub> |
| = | 106mm | |
| N | = | 57mm |
| L< | = | sub> |
| 3< | = | /sub> |
| = | 175mm | |
| A< | = | sub> |
| 1< | = | /sub> |
| = | 32mm | |
| H< | = | sub> |
| 1< | = | /sub> |
| = | 228mm | |
| H | = | 255mm |
| L | = | 312mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 66mm | |
| A | = | 110mm |
| r | = | 120mm |
| L< | = | sub> |
| 1< | = | /sub> |
| = | 192mm | |
| B | = | 96mm |
| S | = | 40mm |
| --- | = | Load rating |
| Dynamic load C< | = | sub> |
| r< | = | /sub> |
| = | 158 kN | |
| Static load C< | = | sub> |
| 0r< | = | /sub> |
| = | 107 kN | |
| Fatigue load limit C< | = | sub> |
| u< | = | /sub> |
| = | 7.1 kN | |
| --- | = | Unit information |
| Mass | = | 21 kg |
