SKU: UCT319-310D1-NTN

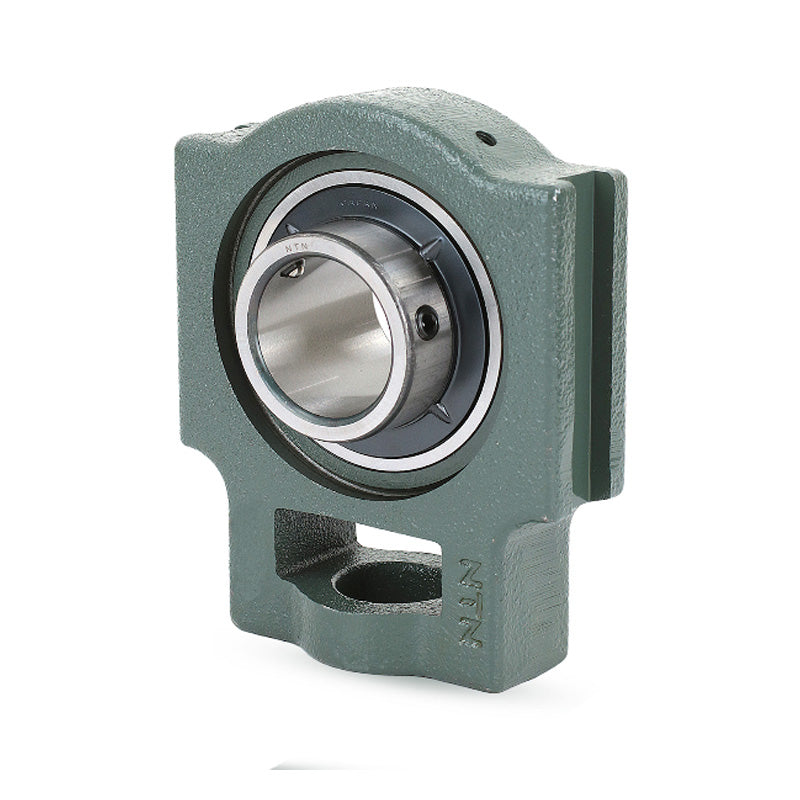

NTN UCT319-310D1 Imperial Cast Iron Take Up Unit with 3-5/8 inch Bore Bearing Unit - Allow 2-3 Days
NTN UCT319-310D1 Imperial Cast Iron Take Up Unit with 3-5/8 inch Bore Bearing Unit - Allow 2-3 Days
Out of stock
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 92.08mm = 3.625 (3-5/8) inch
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 3-5/8 inch |
| N<sub>1</sub> | 1-13/16 inch |
| L<sub>2</sub> | 1-5/16 inch |
| H<sub>2</sub> | 6-1/2 inch |
| N<sub>2</sub> | 4-3/16 inch |
| N | 2-1/4 inch |
| L<sub>3</sub> | 7-3/32 inch |
| A<sub>1</sub> | 1.378 inch |
| H<sub>1</sub> | 9-29/64 inch |
| H | 10-5/8 inch |
| L | 12-11/16 inch |
| A<sub>2</sub> | 2-27/32 inch |
| A | 4-11/32 inch |
| r | 4-29/32 inch |
| L<sub>1</sub> | 7-3/4 inch |
| B | 4.0551 inch |
| S | 1.614 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 169 kN |
| Static load C<sub>0r</sub> | 119 kN |
| Fatigue load limit C<sub>u</sub> | 7.65 kN |
| --- | Unit information |
| Mass | 53 lbs |
