SKU: UCT326

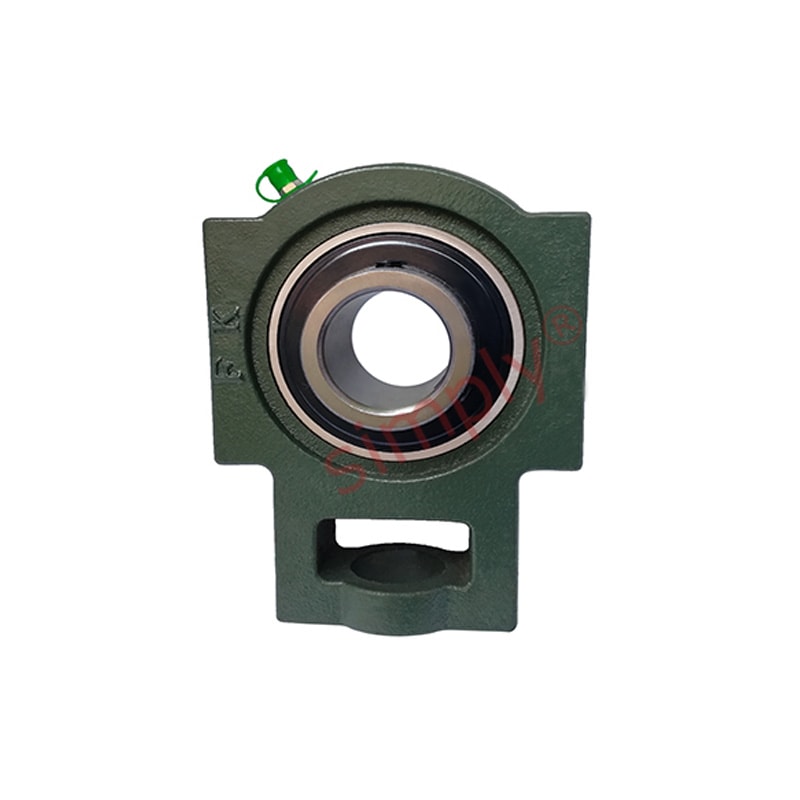

UCT326 Metric Cast Iron Take Up Unit Housing with 130mm Bore Insert
- Regular price
- €1.089.41 ex VAT
- Sale price
- €1.089,41
- Regular price
-
Not in stock
Quantity Price Breaks
3
€969.57
4
€915.10
9
€904.21
19
€893.32
49
€882.42
99
€871.53
499
€817.06
999
€806.16
1999
€795.27
2999
€784.38
4999
€762.59
SKU:
UCT326
UCT326 Metric Cast Iron Take Up Unit Housing with 130mm Bore Insert
- Regular price
- €1.089.41 ex VAT
- Sale price
- €1.089,41
- Regular price
-
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| d | = | 130mm |
| o | = | 65mm |
| g | = | 45mm |
| p | = | 220mm |
| q | = | 150mm |
| s | = | 75mm |
| b | = | 240mm |
| k | = | 50mm |
| e | = | 350mm |
| a | = | 385mm |
| w | = | 465mm |
| j | = | 150mm |
| l | = | 100mm |
| h | = | 285mm |
| B | = | 135mm |
| n | = | 54mm |
| Bearing no | = | UC326 |
| Housing no | = | T326 |
| Weight | = | 68.4 kg |
