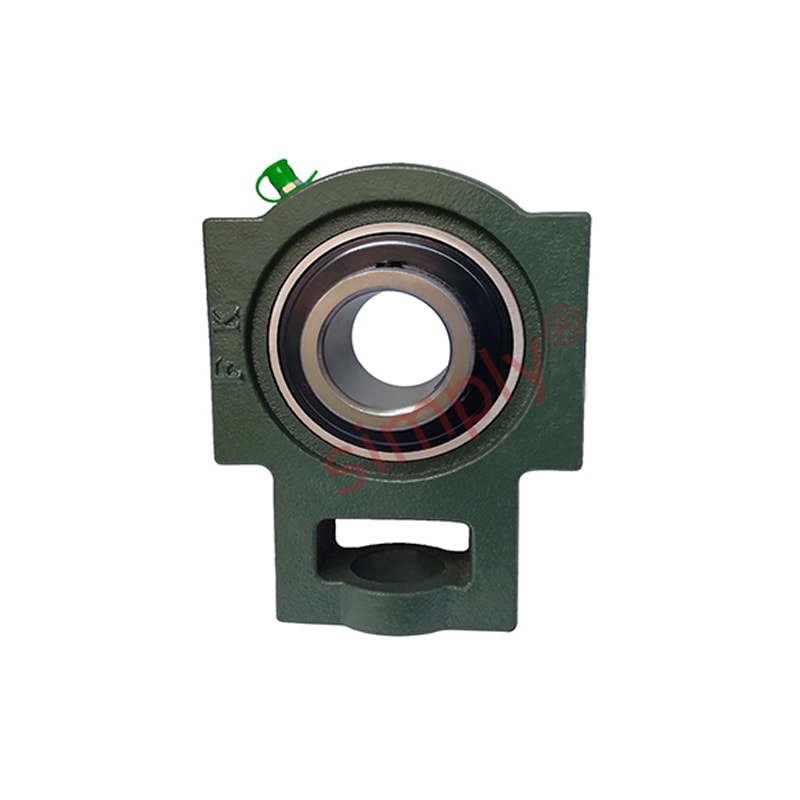

UCT328 Metric Cast Iron Take Up Unit Housing with 140mm Bore Insert
UCT328 Metric Cast Iron Take Up Unit Housing with 140mm Bore Insert
Regular price
€1.189,75
ex VAT
Regular price
Sale price
€1.189,75
ex VAT
In stock
Price Break
3+
€904,15
4+
€853,35
9+
€843,19
19+
€833,04
49+
€822,88
99+
€812,72
499+
€761,92
999+
€751,76
1999+
€741,60
2999+
€731,45
4999+
€711,13
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 140mm
- Style:
- UCT
Technical
Technical
| d | 140mm |
|---|---|
| o | 70mm |
| g | 50mm |
| p | 230mm |
| q | 160mm |
| s | 80mm |
| b | 255mm |
| k | 50mm |
| e | 380mm |
| a | 415mm |
| w | 515mm |
| j | 155mm |
| l | 100mm |
| h | 315mm |
| B | 145mm |
| n | 59mm |
| Bearing no | UC328 |
| Housing no | T328 |
| Weight | 82.9 kg |
