SKU: UCTX06

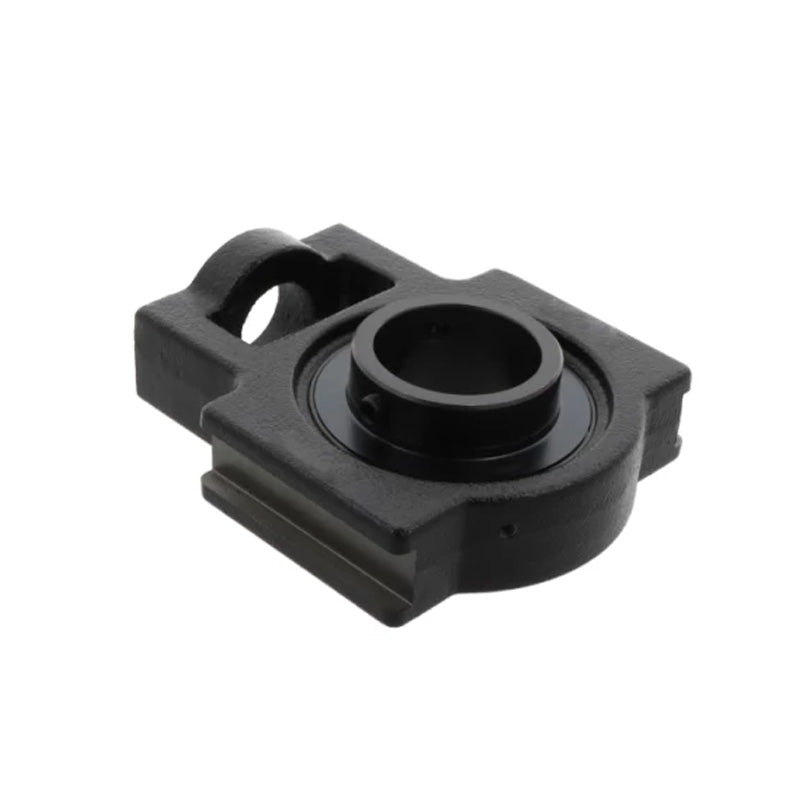

UCTX06 Metric Cast Iron Take Up Unit Housing with 30mm Bore Insert
UCTX06 Metric Cast Iron Take Up Unit Housing with 30mm Bore Insert
Regular price
€28,34
ex VAT
Regular price
Sale price
€28,34
ex VAT
In stock
Price Break
3+
€21,54
4+
€20,33
9+
€20,08
19+
€19,84
49+
€19,60
99+
€19,36
499+
€18,15
999+
€17,91
1999+
€17,66
2999+
€17,42
4999+
€16,94
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCTX Series Medium Duty Take Up Units: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Style:
- UCTX
Technical
Technical
| d | 30mm |
|---|---|
| o | 16mm |
| g | 15mm |
| p | 64mm |
| q | 37mm |
| s | 22mm |
| b | 64mm |
| k | 12mm |
| e | 89mm |
| a | 102mm |
| w | 129mm |
| j | 30mm |
| l | 37mm |
| h | 78mm |
| B | 42.9mm |
| n | 17.5mm |
| Bearing no | UCX06 |
| Housing no | TX06 |
| Weight | 1.6 kg |
