SKU: UCTX08-24

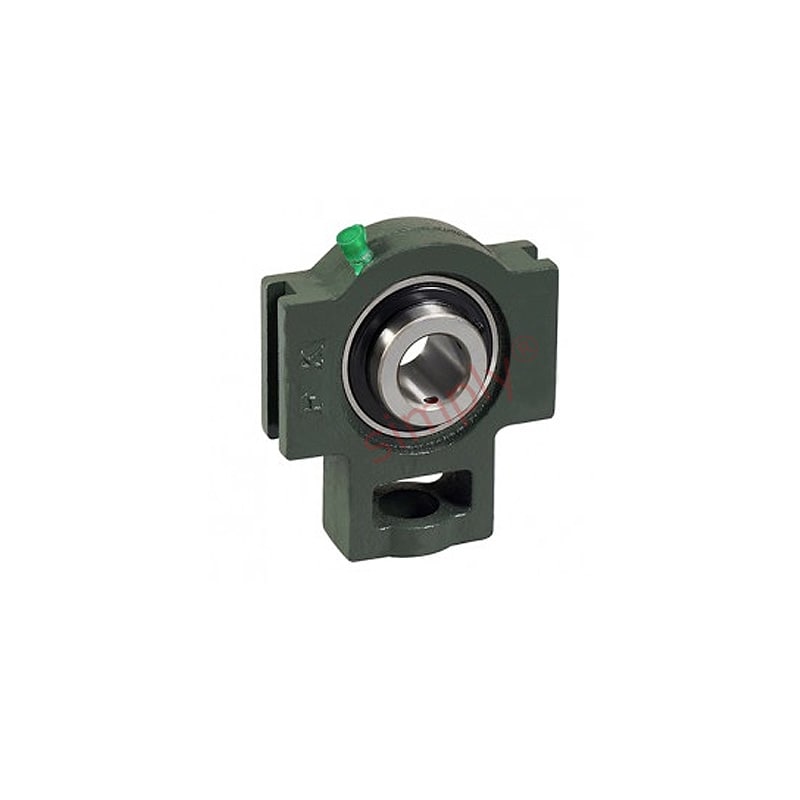

UCTX08-24 Imperial Cast Iron Take Up Unit Housing with 1-1/2 inch Bore Insert
- Regular price
- €36.58 ex VAT
- Sale price
- €36,58
- Regular price
-
In stock
Quantity Price Breaks
3
€32.56
4
€30.73
9
€30.36
19
€30.00
49
€29.63
99
€29.26
499
€27.44
999
€27.07
1999
€26.70
2999
€26.34
4999
€25.61
SKU:
UCTX08-24
UCTX08-24 Imperial Cast Iron Take Up Unit Housing with 1-1/2 inch Bore Insert
- Regular price
- €36.58 ex VAT
- Sale price
- €36,58
- Regular price
-
Description
UCTX Series Medium Duty Take Up Units: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| d | = | 1-1/2 inch |
| o | = | 3/4 inch |
| g | = | 21/32 inch |
| p | = | 3-17/64 inch |
| q | = | 1-15/16 inch |
| s | = | 1-9/64 inch |
| b | = | 3-17/64 inch |
| k | = | 0.63 inch |
| e | = | 4-1/64 inch |
| a | = | 4-39/64 inch |
| w | = | 5-43/64 inch |
| j | = | 1-13/32 inch |
| l | = | 1-15/16 inch |
| h | = | 3-27/64 inch |
| B | = | 1.937 inch |
| n | = | 0.748 inch |
| Bearing no | = | UCX08-24 |
| Housing no | = | TX08 |
| Weight | = | 2.5 kg |
