SKU: UCTX14-44

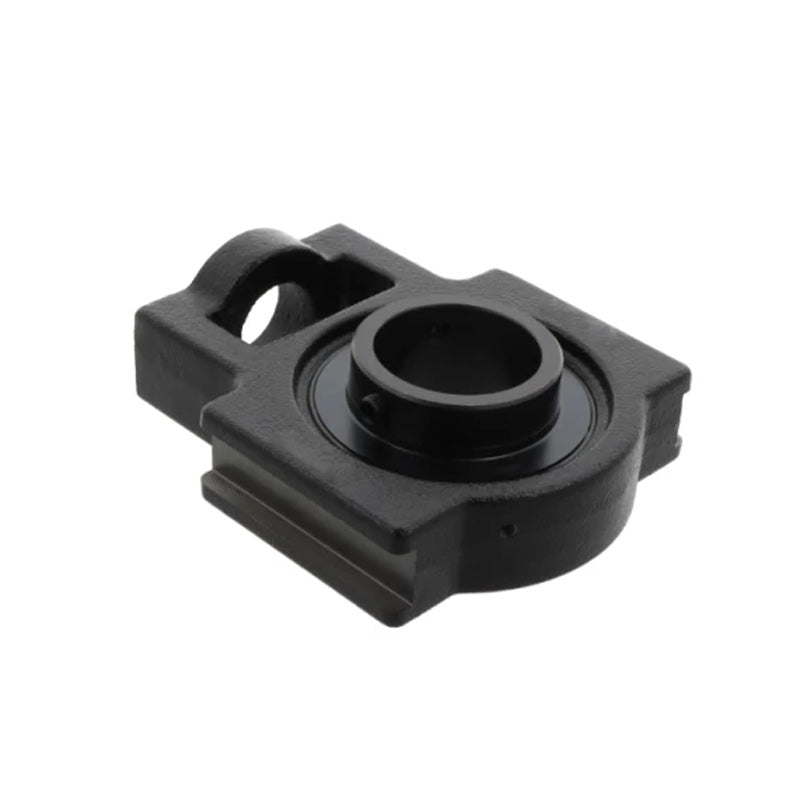

UCTX14-44 Imperial Cast Iron Take Up Unit Housing with 2-3/4 inch Bore Insert
UCTX14-44 Imperial Cast Iron Take Up Unit Housing with 2-3/4 inch Bore Insert
Regular price
€116,90
ex VAT
Regular price
Sale price
€116,90
ex VAT
In stock
Price Break
3+
€88,84
4+
€83,85
9+
€82,85
19+
€81,85
49+
€80,85
99+
€79,85
499+
€74,86
999+
€73,86
1999+
€72,87
2999+
€71,87
4999+
€69,87
Quantity
Couldn't load pickup availability
Description
Description
UCTX Series Medium Duty Take Up Units: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 69.85mm = 2.75 (2-3/4) inch
- Style:
- UCTX
Technical
Technical
| d | 2-3/4 inch |
|---|---|
| o | 1-17/64 inch |
| g | 29/32 inch |
| p | 4-3/8 inch |
| q | 2-3/4 inch |
| s | 1-39/64 inch |
| b | 4-49/64 inch |
| k | 1.024 inch |
| e | 5-15/16 inch |
| a | 6-37/64 inch |
| w | 9-9/64 inch |
| j | 1-57/64 inch |
| l | 2-3/4 inch |
| h | 5-33/64 inch |
| B | 3.063 inch |
| n | 1.311 inch |
| Bearing no | UCX14-44 |
| Housing no | TX14 |
| Weight | 7.3 kg |
