SKU: UCTX15

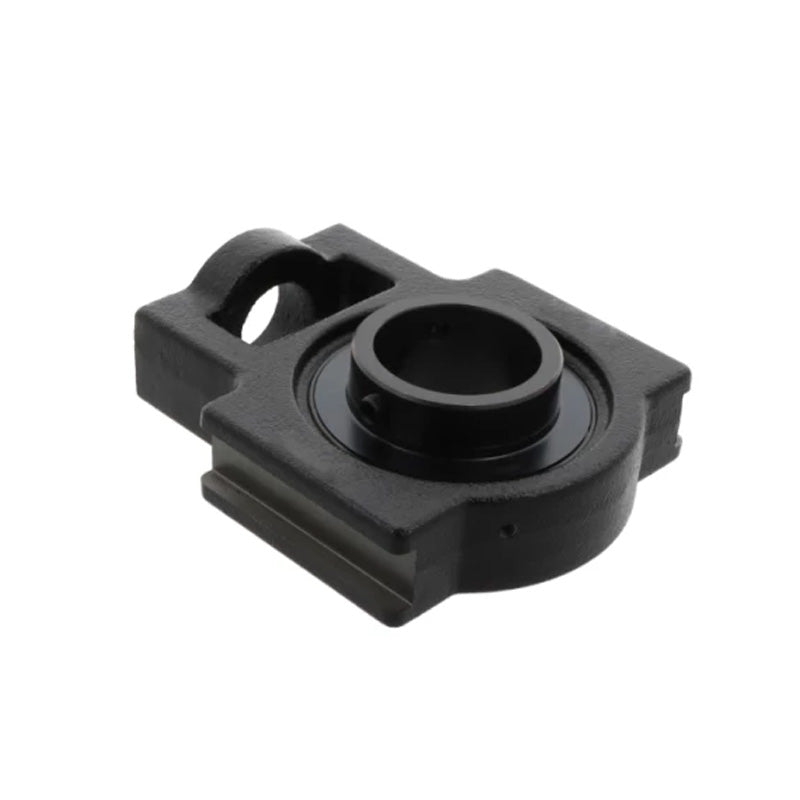

UCTX15 Metric Cast Iron Take Up Unit Housing with 75mm Bore Insert
UCTX15 Metric Cast Iron Take Up Unit Housing with 75mm Bore Insert
Regular price
€123,74
ex VAT
Regular price
Sale price
€123,74
ex VAT
In stock
Price Break
3+
€94,04
4+
€88,76
9+
€87,70
19+
€86,65
49+
€85,59
99+
€84,53
499+
€79,25
999+
€78,19
1999+
€77,14
2999+
€76,08
4999+
€73,97
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCTX Series Medium Duty Take Up Units: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 75mm
- Style:
- UCTX
Technical
Technical
| d | 75mm |
|---|---|
| o | 32mm |
| g | 23mm |
| p | 111mm |
| q | 70mm |
| s | 41mm |
| b | 121mm |
| k | 28mm |
| e | 165mm |
| a | 184mm |
| w | 235mm |
| j | 48mm |
| l | 70mm |
| h | 140mm |
| B | 82.6mm |
| n | 33.3mm |
| Bearing no | UCX15 |
| Housing no | TX15 |
| Weight | 8 kg |
