SKU: UCTX16

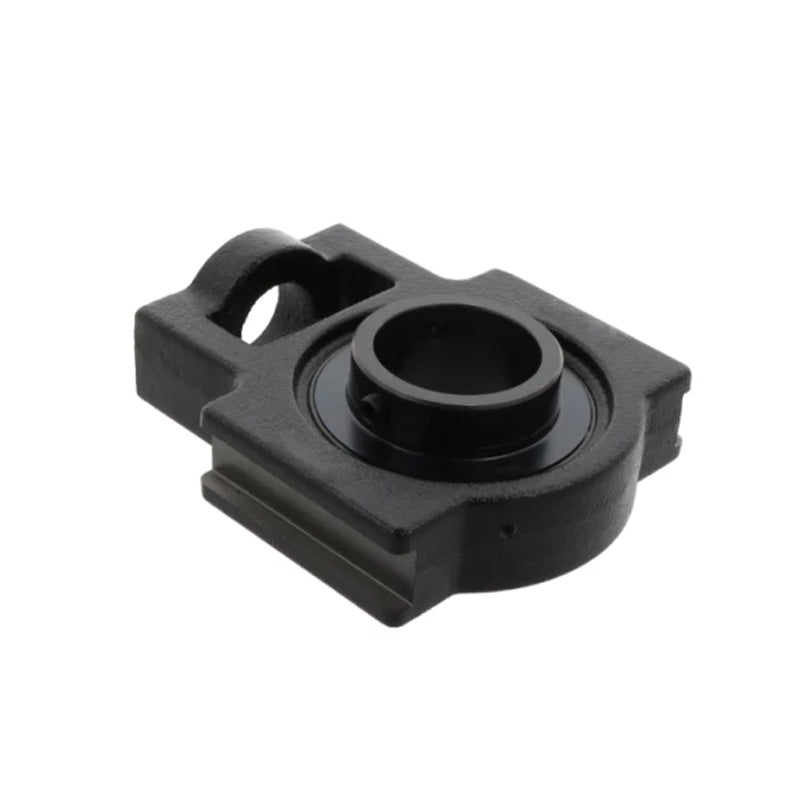

UCTX16 Metric Cast Iron Take Up Unit Housing with 80mm Bore Insert
UCTX16 Metric Cast Iron Take Up Unit Housing with 80mm Bore Insert
Regular price
€146,19
ex VAT
Regular price
Sale price
€146,19
ex VAT
In stock
Price Break
3+
€111,09
4+
€104,85
9+
€103,60
19+
€102,36
49+
€101,11
99+
€99,86
499+
€93,62
999+
€92,37
1999+
€91,12
2999+
€89,87
4999+
€87,38
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCTX Series Medium Duty Take Up Units: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 80mm
- Style:
- UCTX
Technical
Technical
| d | 80mm |
|---|---|
| o | 38mm |
| g | 30mm |
| p | 124mm |
| q | 73mm |
| s | 48mm |
| b | 157mm |
| k | 28mm |
| e | 173mm |
| a | 198mm |
| w | 260mm |
| j | 54mm |
| l | 73mm |
| h | 162mm |
| B | 85.7mm |
| n | 34.1mm |
| Bearing no | UCX16 |
| Housing no | TX16 |
| Weight | 11.4 kg |
