SKU: UCW.203-11

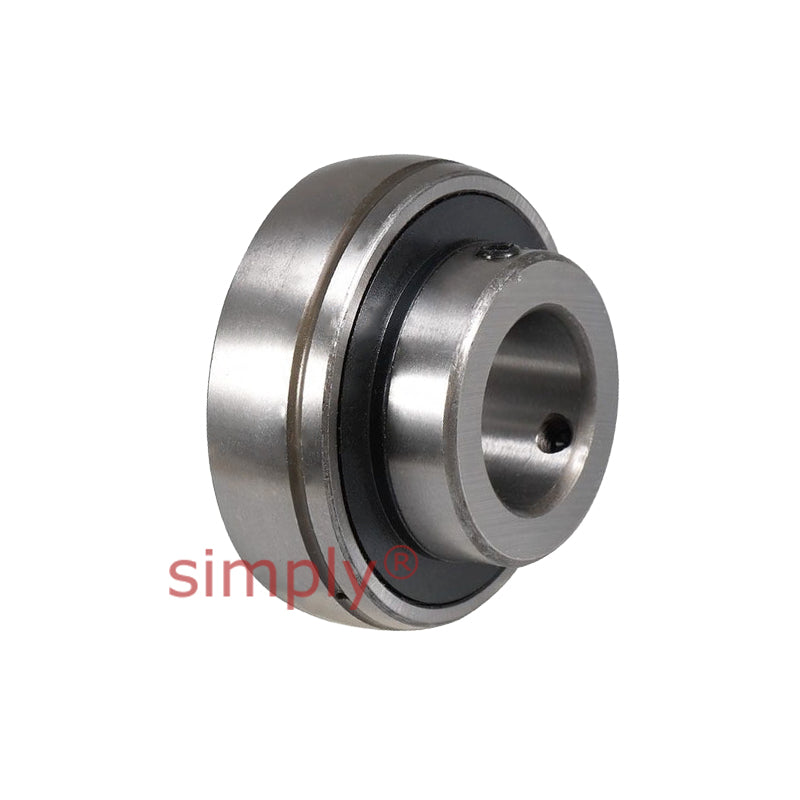

UCW203-11 Imperial Bearing Insert with 11/16 inch Bore 40mm Outside Dia
- Regular price
- €23.06 ex VAT
- Sale price
- €23,06
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
3
€20.52
4
€19.37
9
€19.14
19
€18.91
49
€18.68
99
€18.45
499
€17.30
999
€17.06
1999
€16.83
2999
€16.60
4999
€16.14
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Technical
| d | = | 11/16 inch |
| D | = | 40mm |
| Bi | = | 27.4mm |
| Be | = | 14mm |
| n | = | 11.5mm |
| m | = | 15.9mm |
| G | = | 4.2mm |
| Grub screw | = | 10-32 UNF |
| Weight | = | 0.1 kg |
| Dynamic load | = | 973 kgf |
| Static load | = | 487 kgf |
