SKU: UCX.11.TS.CHAL

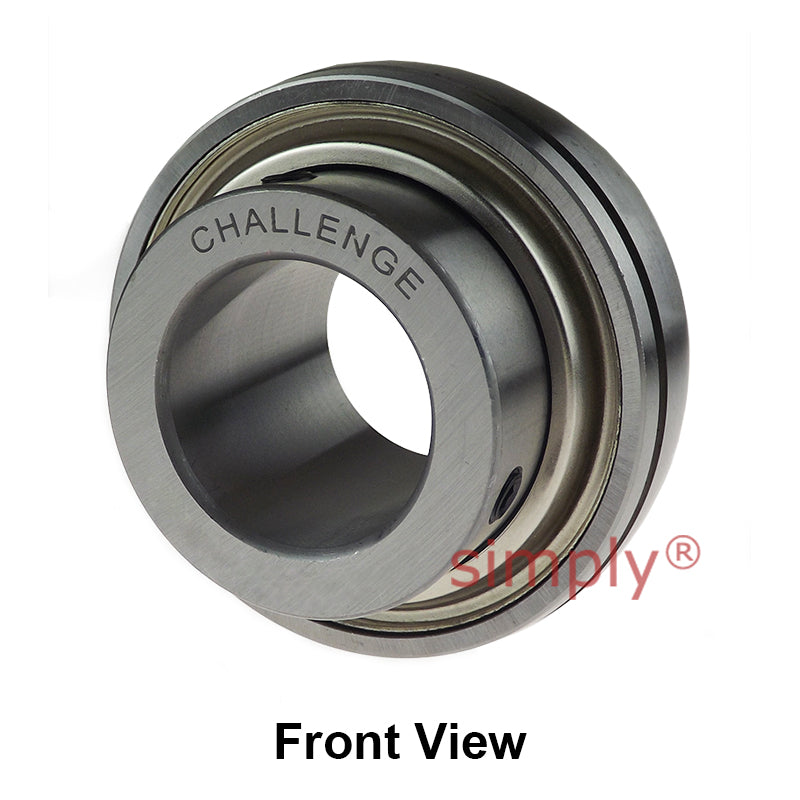

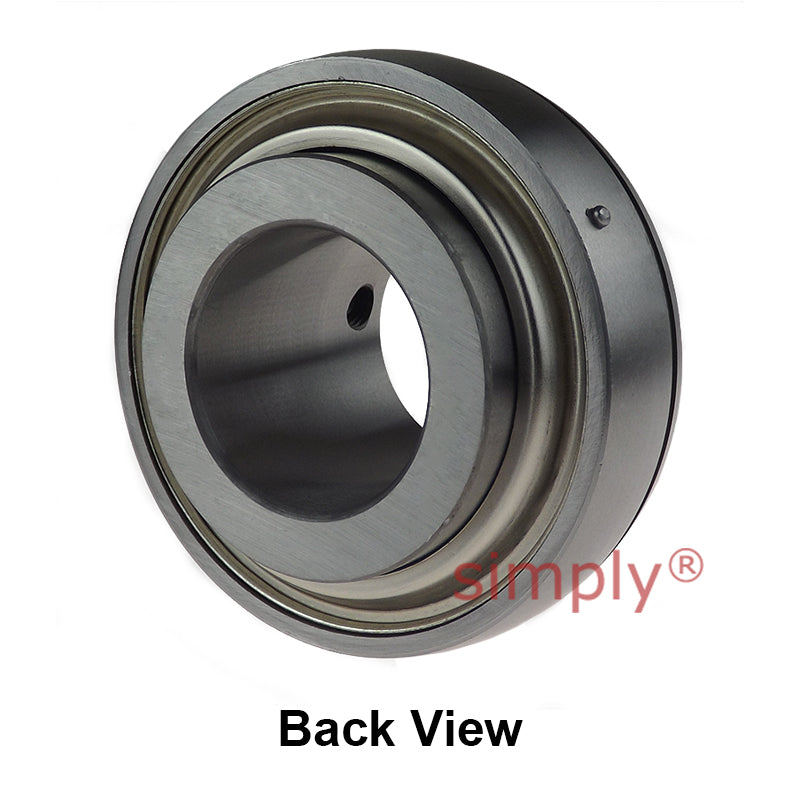

Challenge UCX11 Metric Insert with Grub Screws with 55mm Bore 110mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- €75.55 ex VAT
- Sale price
- €75,55
- Regular price
-
ex VAT
In stock
Quantity Price Breaks
3
€67.24
5
€63.46
9
€62.71
19
€61.95
49
€61.20
74
€60.44
99
€56.66
199
€55.91
249
€55.15
499
€54.40
999
€52.89
Description
UCX Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
Technical
| Shaft Diameter d | = | 55mm |
| Outside Diameter D | = | 110mm |
| Overall Width Bi | = | 65.1mm |
| Inner Race Width Be | = | 27mm |
| Back of Bearing to Centre Line n | = | 25.4mm |
| Front of Bearing to Centre Line m | = | 39.7mm |
| Dimension G | = | 10mm |
| Grub Screws x 2 | = | M10X1.25mm |
| Load Rating (Dynamic) | = | 4100kg |
| Load Rating (Static) | = | 3150kg |
| Max Speed | = | 1600 rev/min |
| Working Temperature | = | -30& |
| deg | = | C to +120& |
| deg | = | C |
