SKU: UCX.15.TS.CHAL

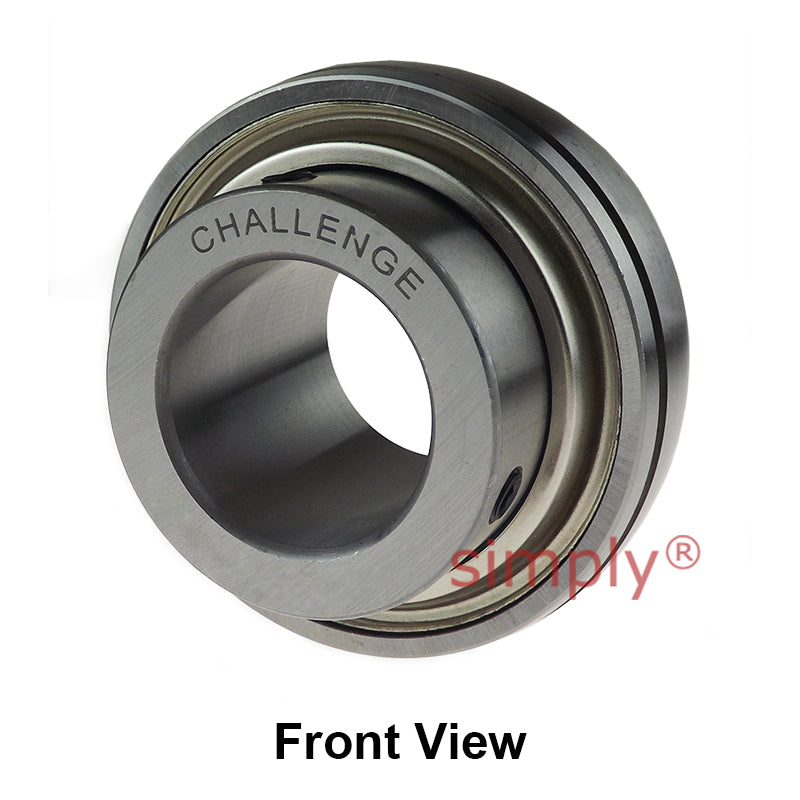

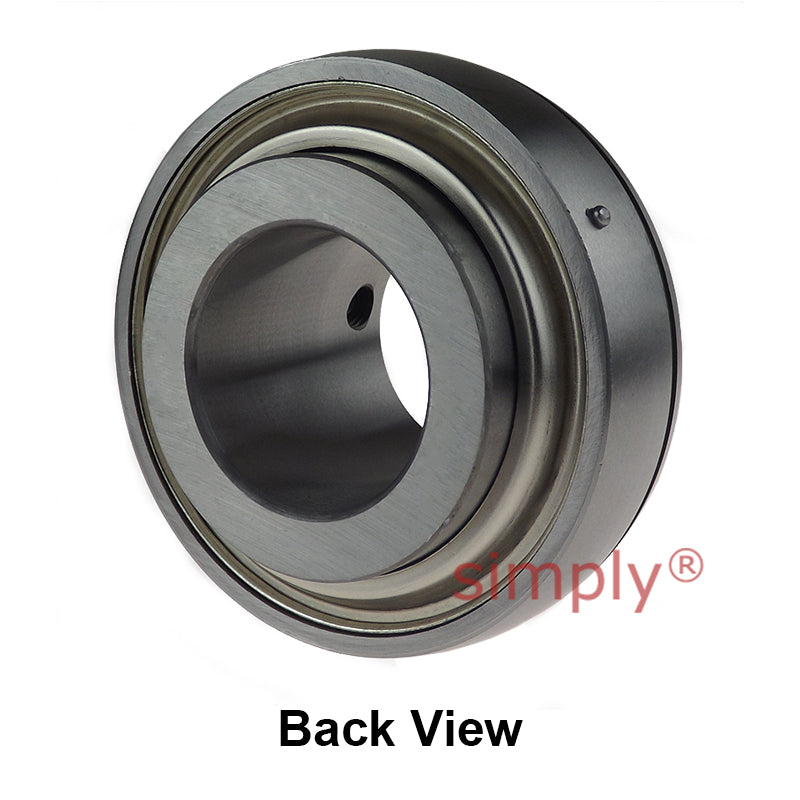

Challenge UCX15 Metric Insert with Grub Screws with 75mm Bore 140mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- €189.49 ex VAT
- Sale price
- €189,49
- Regular price
-
In stock
Quantity Price Breaks
3
€168.65
5
€159.17
9
€157.28
19
€155.38
49
€153.49
74
€151.59
99
€142.12
199
€140.22
249
€138.33
499
€136.43
999
€132.64
SKU:
UCX.15.TS.CHAL
Challenge UCX15 Metric Insert with Grub Screws with 75mm Bore 140mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- €189.49 ex VAT
- Sale price
- €189,49
- Regular price
-
Description
UCX Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
Technical
| Shaft Diameter d | = | 75mm |
| Outside Diameter D | = | 140mm |
| Overall Width Bi | = | 82.6mm |
| Inner Race Width Be | = | 33mm |
| Back of Bearing to Centre Line n | = | 33.3mm |
| Front of Bearing to Centre Line m | = | 49.3mm |
| Dimension G | = | 12mm |
| Grub Screws x 2 | = | M12x1.50mm |
| Load Rating (Dynamic) | = | 5700kg |
| Load Rating (Static) | = | 4550kg |
| Max Speed | = | 1200 rev/min |
| Working Temperature | = | -30& |
| deg | = | C to +120& |
| deg | = | C |
