SKU: UELF212D1W3-NTN

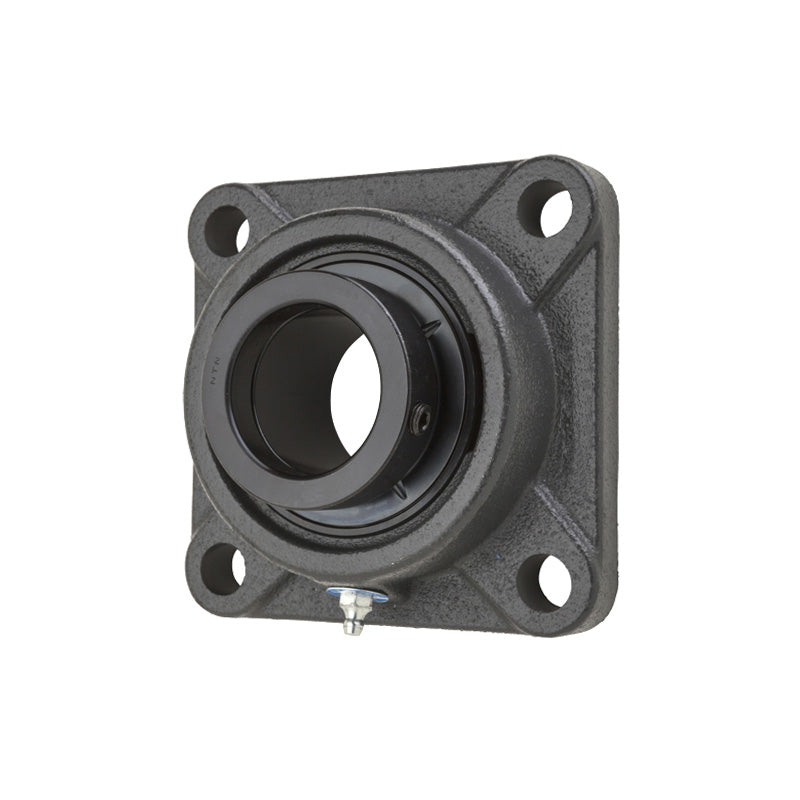

NTN UELF212D1W3 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €90.10 ex VAT
- Sale price
- €90,10
- Regular price
-
Not in stock
Quantity Price Breaks
3
€80.19
4
€75.68
9
€74.78
19
€73.88
49
€72.98
99
€72.08
499
€67.58
999
€66.67
1999
€65.77
2999
€64.87
4999
€63.07
SKU:
UELF212D1W3-NTN
NTN UELF212D1W3 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €90.10 ex VAT
- Sale price
- €90,10
- Regular price
-
Description
UELF200 Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| Shaft diameter | = | 60mm |
| L | = | 175mm |
| J | = | 143mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 29mm | |
| A< | = | sub> |
| 1< | = | /sub> |
| = | 18mm | |
| A | = | 48mm |
| N | = | 19mm |
| A< | = | sub> |
| 0< | = | /sub> |
| = | 75.85mm | |
| B< | = | sub> |
| 1< | = | /sub> |
| = | 77.8mm | |
| S | = | 30.95mm |
| F min. | = | 81mm |
| Fixing bolt | = | M16 |
| Mass | = | 4.2 kg |
