SKU: UELF312D1W3-NTN

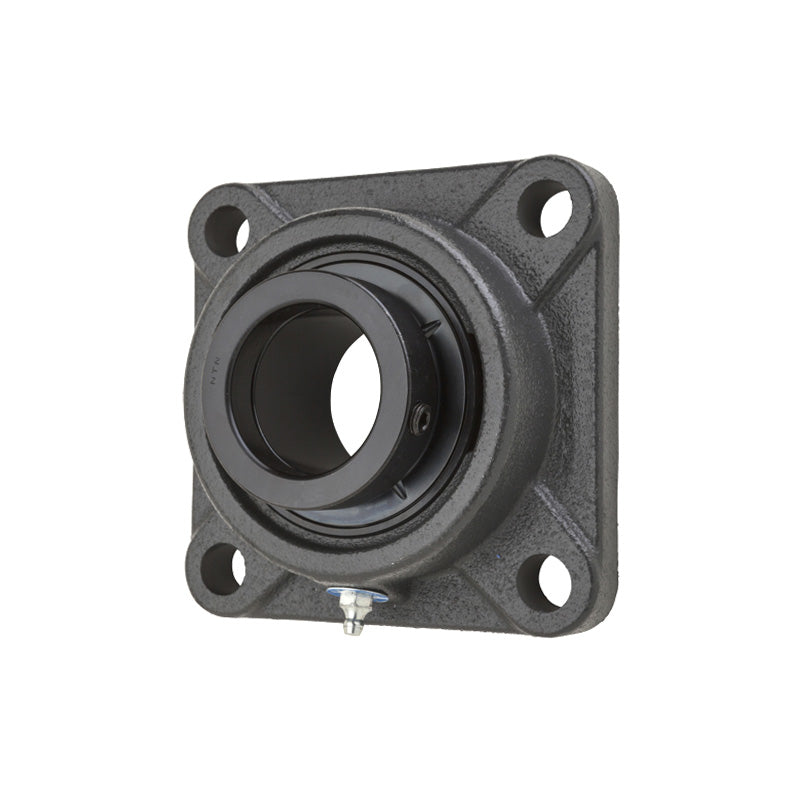

NTN UELF312D1W3 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Eccentric Collar Insert - Allow 2-3 Days
NTN UELF312D1W3 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Eccentric Collar Insert - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UELF300 Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 60mm
- Style:
- UELF
- Bolt Hole Centres:
- 150mm
Technical
Technical
| Shaft diameter | 60mm |
|---|---|
| L | 195mm |
| J | 150mm |
| A<sub>2</sub> | 33mm |
| A<sub>1</sub> | 22mm |
| A | 56mm |
| N | 23mm |
| A<sub>0</sub> | 81.45mm |
| B<sub>1</sub> | 79.4mm |
| S | 30.95mm |
| Fixing bolt | M20 |
| Mass | 6.7 kg |
