SKU: UELFL205D1-NTN
NTN UELFL205D1 Metric Two Bolt Cast Iron Oval Housing with 25mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €33.91 ex VAT
- Sale price
- €33,91
- Regular price
-
Not in stock
Quantity Price Breaks
3
€30.18
4
€28.48
9
€28.15
19
€27.81
49
€27.47
99
€27.13
499
€25.43
999
€25.09
1999
€24.75
2999
€24.42
4999
€23.74
SKU:
UELFL205D1-NTN
NTN UELFL205D1 Metric Two Bolt Cast Iron Oval Housing with 25mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €33.91 ex VAT
- Sale price
- €33,91
- Regular price
-
Description
UELFL200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing

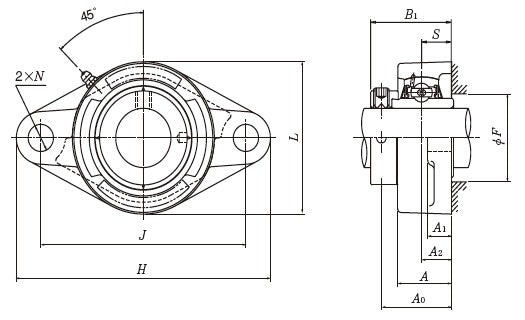

Technical
| Shaft diameter | = | 25mm |
| H | = | 130mm |
| J | = | 99mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 16mm | |
| A< | = | sub> |
| 1< | = | /sub> |
| = | 13mm | |
| A | = | 27mm |
| N | = | 16mm |
| L | = | 68mm |
| A< | = | sub> |
| 0< | = | /sub> |
| = | 42.95mm | |
| B< | = | sub> |
| 1< | = | /sub> |
| = | 44.4mm | |
| S | = | 17.45mm |
| F min. | = | 38mm |
| Fixing bolt | = | M14 |
| Mass | = | 0.7 kg |
