SKU: UELP214-210D1W3-NTN

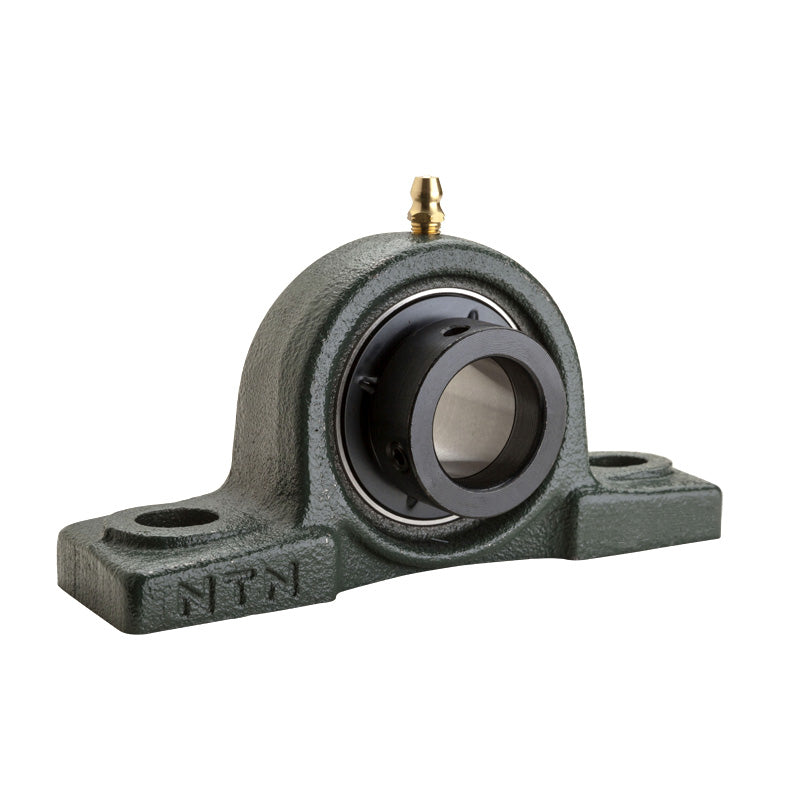

NTN UELP214-210D1W3 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-5/8 inch Eccentric Collar Insert - Allow 2-3 Days
NTN UELP214-210D1W3 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-5/8 inch Eccentric Collar Insert - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UELP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 66.68mm = 2.625 (2-5/8) inch
- Style:
- UELP
- Bolt Hole Centres:
- 8-9/32 inch
Technical
Technical
| Shaft diameter | 2-5/8 inch |
|---|---|
| H | 3-1/8 inch |
| L | 10-15/32 inch |
| J | 8-9/32 inch |
| A | 2-27/32 inch |
| N | 31/32 inch |
| N<sub>1</sub> | 1-3/32 inch |
| H<sub>1</sub> | 1-1/16 inch |
| H<sub>2</sub> | 6-3/16 inch |
| L<sub>1</sub> | 3-1/32 inch |
| B<sub>1</sub> | 3.374 inch |
| S | 1.344 inch |
| Fixing bolt | 3/4 inch |
| Mass | 15 lbs |
