SKU: UELP311D1W3-NTN

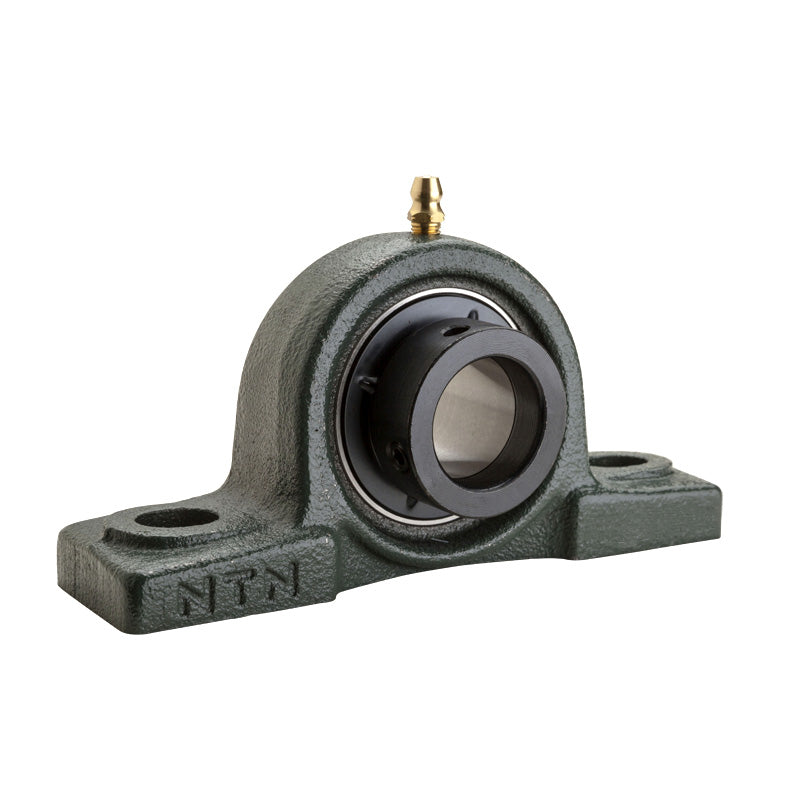

NTN UELP311D1W3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days
NTN UELP311D1W3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UELP300 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 55mm
- Style:
- UELP
- Bolt Hole Centres:
- 236mm
Technical
Technical
| Shaft diameter | 55mm |
|---|---|
| H | 80mm |
| L | 310mm |
| J | 236mm |
| A | 80mm |
| N | 20mm |
| N<sub>1</sub> | 38mm |
| H<sub>1</sub> | 30mm |
| H<sub>2</sub> | 154mm |
| L<sub>1</sub> | 85mm |
| B<sub>1</sub> | 73mm |
| S | 27.8mm |
| Fixing bolt | M16 |
| Mass | 7.6 kg |
