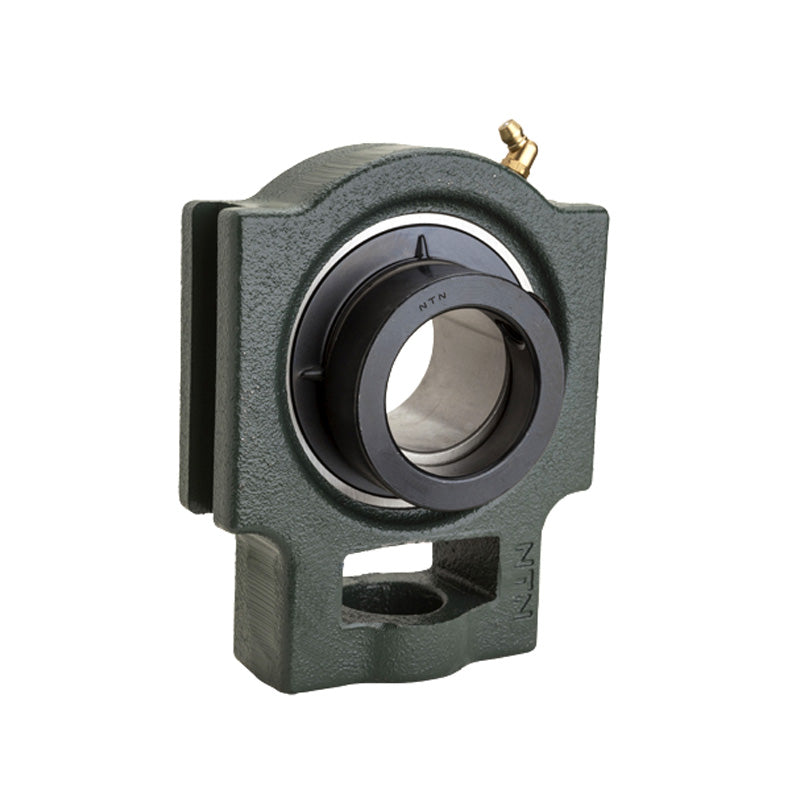

NTN UELT204D1 Metric Cast Iron Take Up Unit with 20mm Bore Eccentric Collar Insert - Allow 2-3 Days
NTN UELT204D1 Metric Cast Iron Take Up Unit with 20mm Bore Eccentric Collar Insert - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UELT200 Series Cast Iron Take Up Units: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 20mm
- Style:
- UELT
Technical
Technical
| Shaft diameter | 20mm |
|---|---|
| N<sub>1</sub> | 16mm |
| L<sub>2</sub> | 12mm |
| H<sub>2</sub> | 51mm |
| N<sub>2</sub> | 32mm |
| N | 19mm |
| L<sub>3</sub> | 51mm |
| A<sub>1</sub> | 12mm |
| H<sub>1</sub> | 76mm |
| H | 89mm |
| L | 94mm |
| A<sub>2</sub> | 21mm |
| A | 32mm |
| r | 33mm |
| L<sub>1</sub> | 61mm |
| B<sub>1</sub> | 43.7mm |
| S | 17.1mm |
| Mass | 0.6 kg |
