SKU: UELT208D1W3-NTN

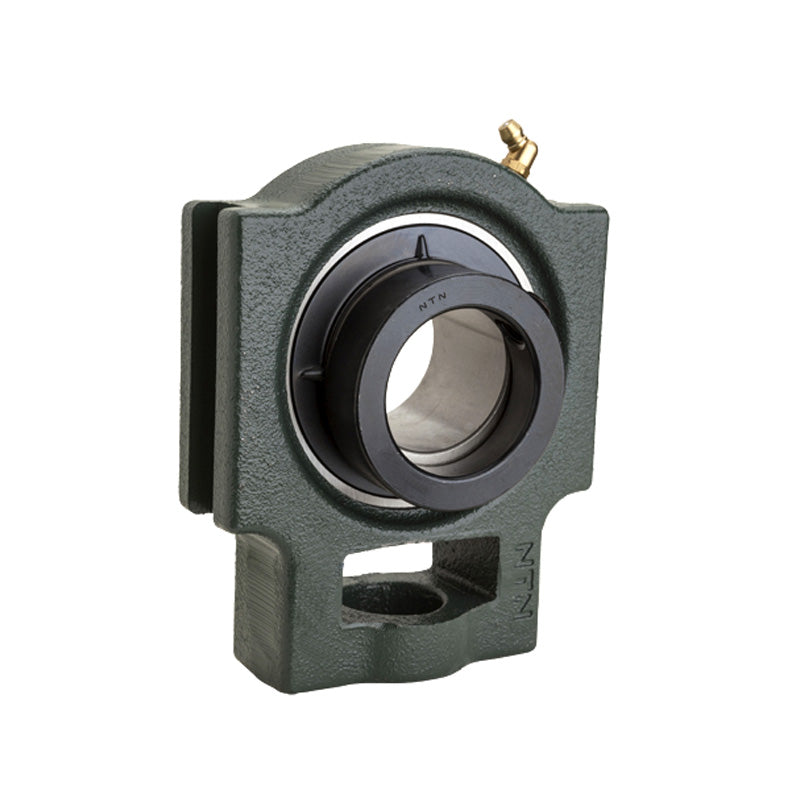

NTN UELT208D1W3 Metric Cast Iron Take Up Unit with 40mm Bore Eccentric Collar Insert - Allow 2-3 Days

NTN UELT208D1W3 Metric Cast Iron Take Up Unit with 40mm Bore Eccentric Collar Insert - Allow 2-3 Days

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Shaft diameter 40mm
N<sub>1</sub> 19mm
L<sub>2</sub> 18mm
H<sub>2</sub> 83mm
N<sub>2</sub> 49mm
N 29mm
L<sub>3</sub> 83mm
A<sub>1</sub> 16mm
H<sub>1</sub> 102mm
H 114mm
L 144mm
A<sub>2</sub> 33mm
A 49mm
r 56mm
L<sub>1</sub> 88mm
B<sub>1</sub> 56.3mm
S 21.4mm
Mass 2.5 kg
