SKU: UELT212D1-NTN

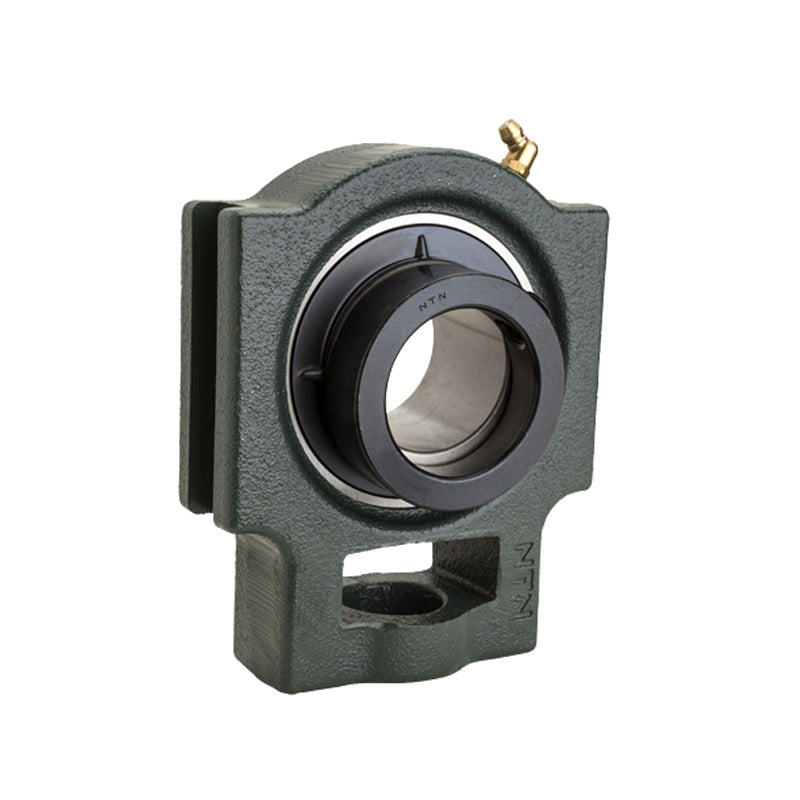

NTN UELT212D1 Metric Cast Iron Take Up Unit with 60mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €86.35 ex VAT
- Sale price
- €86,35
- Regular price
-
Not in stock
Quantity Price Breaks
3
€76.85
4
€72.53
9
€71.67
19
€70.81
49
€69.94
99
€69.08
499
€64.76
999
€63.90
1999
€63.04
2999
€62.17
4999
€60.45
SKU:
UELT212D1-NTN
NTN UELT212D1 Metric Cast Iron Take Up Unit with 60mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €86.35 ex VAT
- Sale price
- €86,35
- Regular price
-
Description
UELT200 Series Cast Iron Take Up Units: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing

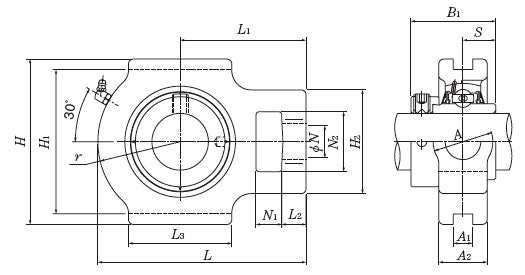

Technical
| Shaft diameter | = | 60mm |
| N< | = | sub> |
| 1< | = | /sub> |
| = | 32mm | |
| L< | = | sub> |
| 2< | = | /sub> |
| = | 21mm | |
| H< | = | sub> |
| 2< | = | /sub> |
| = | 102mm | |
| N< | = | sub> |
| 2< | = | /sub> |
| = | 64mm | |
| N | = | 35mm |
| L< | = | sub> |
| 3< | = | /sub> |
| = | 102mm | |
| A< | = | sub> |
| 1< | = | /sub> |
| = | 22mm | |
| H< | = | sub> |
| 1< | = | /sub> |
| = | 130mm | |
| H | = | 146mm |
| L | = | 194mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 42mm | |
| A | = | 64mm |
| r | = | 75mm |
| L< | = | sub> |
| 1< | = | /sub> |
| = | 119mm | |
| B< | = | sub> |
| 1< | = | /sub> |
| = | 77.8mm | |
| S | = | 30.95mm |
| Mass | = | 5.2 kg |
