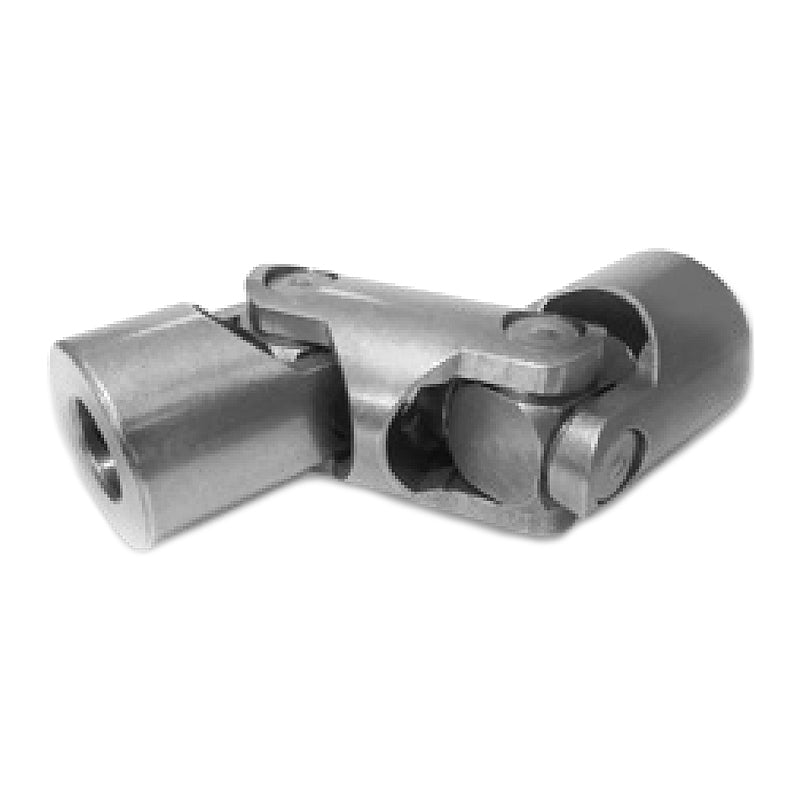

Major Brand UJDN50X25 Steel Universal Double Joint with Needle Roller Bearing 25x50x163mm

UJDN Steel Universal Double Joint with Needle Roller Bearing: A Universal Joint (U-joint, Cardan joint, Hooke’s joint) is a mechanical coupling that connects rotating shafts, allowing them to transmit torque even when misaligned. It features two hinges at 90 degrees to each other, connected by a cross shaft. This universal joint is double-jointed and is made of steel with a needle roller bearing. Commonly used in machinery drive shafts, they provide flexibility and accommodate misalignment while transmitting rotary motion and power. Double cardan joints use two-phased universal joints to reduce variations in angular velocity.
Benefits: High-quality, high-performance, adaptable to misaligned shafts

Brand / Quality:

Simply Universal Joints

Inside Diameter:

25mm

Outside Diameter:

50mm

Length:

163mm

Style:

UJDN
