SKU: UKC206/HE2306
UKC206/HE2306 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 1 inch Bore Insert 3.3465 inch Outside Dia
- Regular price
- €36.57 ex VAT
- Sale price
- €36,57
- Regular price
-
Not in stock
Quantity Price Breaks
3
€32.55
4
€30.72
9
€30.35
19
€29.99
49
€29.62
99
€29.26
499
€27.43
999
€27.06
1999
€26.70
2999
€26.33
4999
€25.60
SKU:
UKC206/HE2306
UKC206/HE2306 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 1 inch Bore Insert 3.3465 inch Outside Dia
- Regular price
- €36.57 ex VAT
- Sale price
- €36,57
- Regular price
-
Description

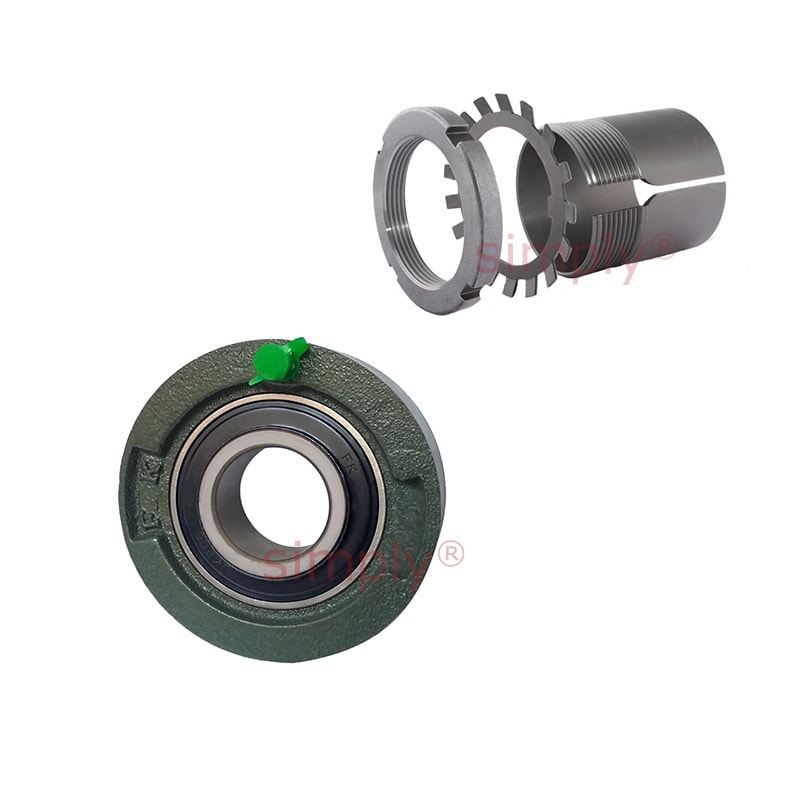

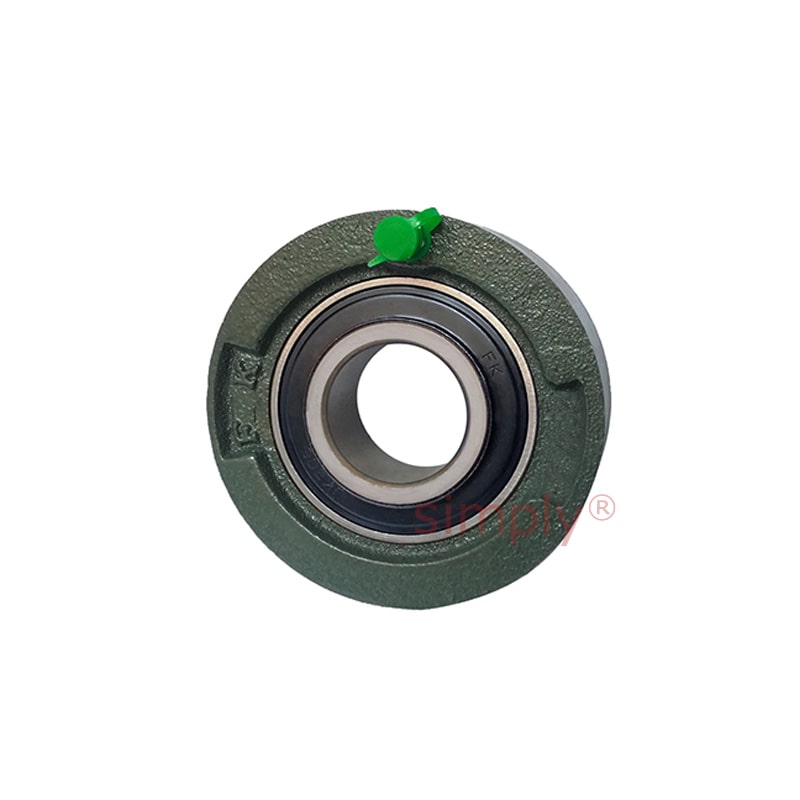

UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
Technical
| Bore d | = | 1 inch |
| Outer Dia a | = | 3.3465 inch |
| g | = | 1-1/16 inch |
| r | = | 0.079 inch |
| B | = | 1.496 inch |
| Bearing No | = | UK206 |
| HE2306 | = | Housing No |
| C206 | = | N/A |
