SKU: UKC207/H2307
UKC207/H2307 Metric Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 30mm Bore Insert 90mm Outside Dia
- Regular price
- €40.23 ex VAT
- Sale price
- €40,23
- Regular price
-
Not in stock
Quantity Price Breaks
3
€35.80
4
€33.79
9
€33.39
19
€32.99
49
€32.59
99
€32.18
499
€30.17
999
€29.77
1999
€29.37
2999
€28.97
4999
€28.16
SKU:
UKC207/H2307
UKC207/H2307 Metric Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 30mm Bore Insert 90mm Outside Dia
- Regular price
- €40.23 ex VAT
- Sale price
- €40,23
- Regular price
-
Description
UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert

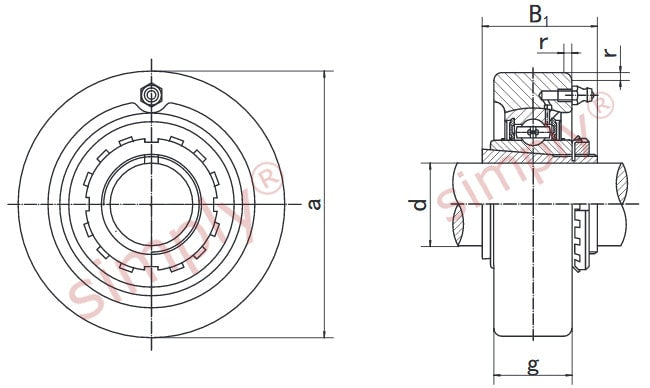

Technical
| Bore d | = | 30mm |
| Outer Dia a | = | 90mm |
| g | = | 28mm |
| r | = | 2mm |
| B | = | 43mm |
| Bearing No | = | UK207 |
| H2307 | = | Housing No |
| C207 | = | N/A |
