SKU: UKC207D1/HS2307-NTN

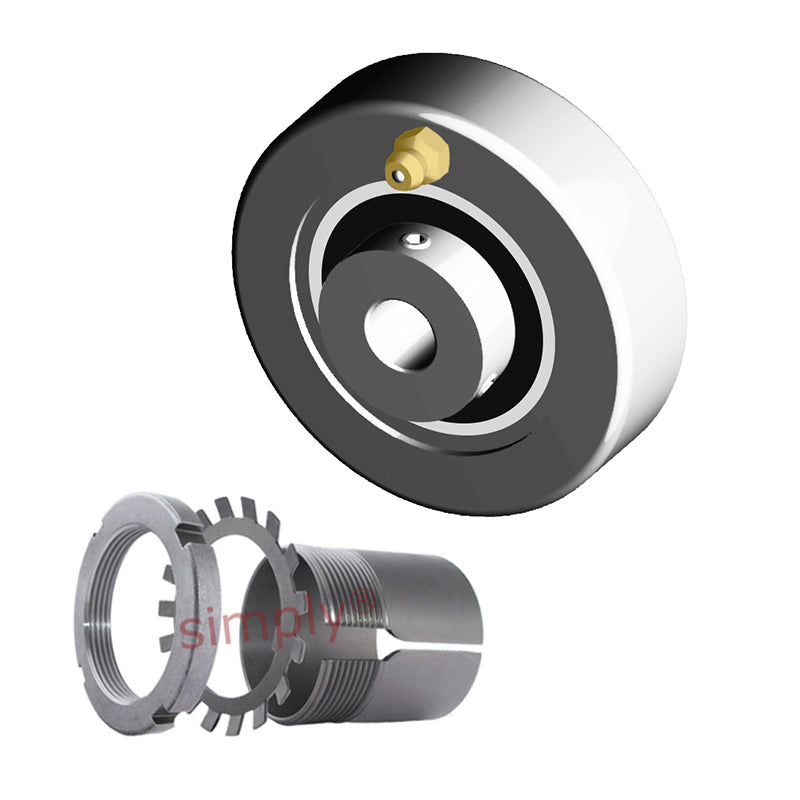

NTN UKC207D1/HS2307 Imperial Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 1-1/8 inch Bore Insert 3.5433 inch Outside Dia - Allow 2-3 Days
NTN UKC207D1/HS2307 Imperial Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 1-1/8 inch Bore Insert 3.5433 inch Outside Dia - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Style:
- UKC
Technical
Technical
| Shaft diameter | 1-1/8 inch |
|---|---|
| H | 3.5433 inch |
| A | 1-7/64 inch |
| r | 0.079 inch |
| B<sub>1</sub> | 1.693 inch |
| Mass | 2.2 lbs |
