SKU: UKC209/HE2309

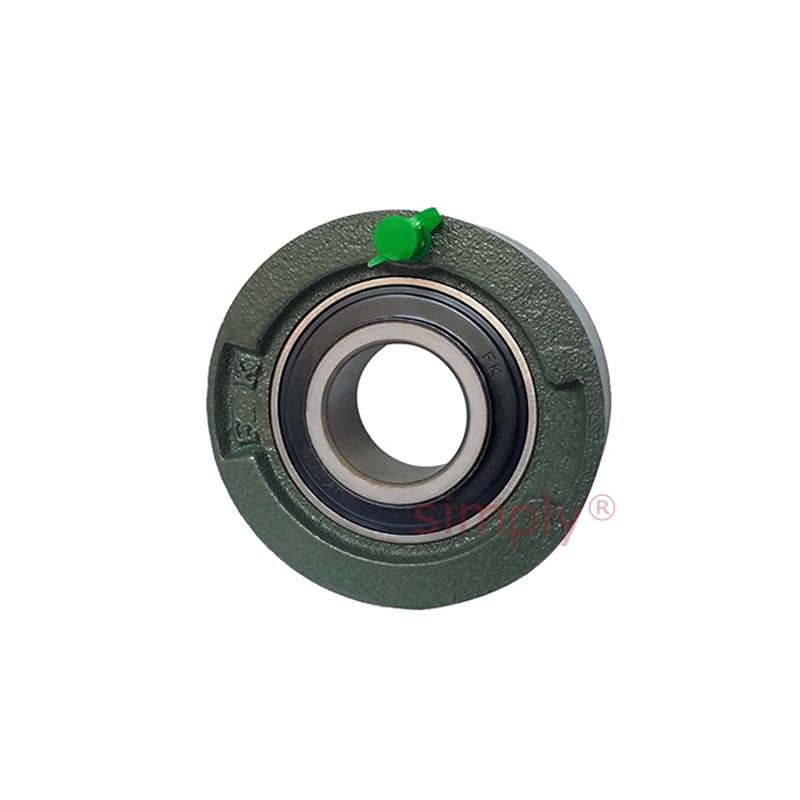

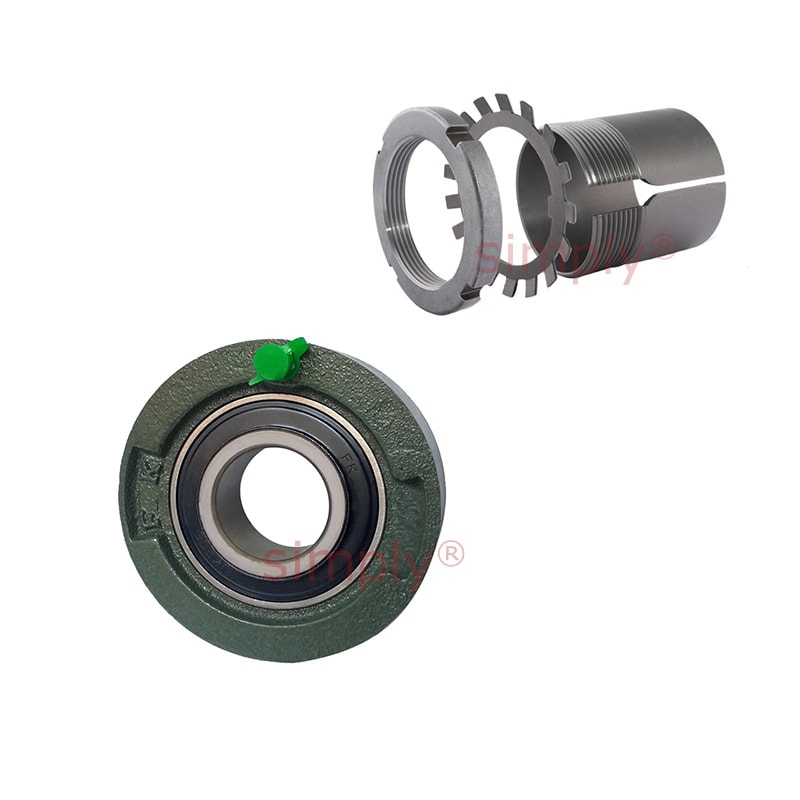

UKC209/HE2309 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 1-1/2 inch Bore Insert 4.3307 inch Outside Dia
- Regular price
- €47.54 ex VAT
- Sale price
- €47,54
- Regular price
-
Not in stock
Quantity Price Breaks
3
€42.31
4
€39.93
9
€39.46
19
€38.98
49
€38.51
99
€38.03
499
€35.66
999
€35.18
1999
€34.70
2999
€34.23
4999
€33.28
SKU:
UKC209/HE2309
UKC209/HE2309 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 1-1/2 inch Bore Insert 4.3307 inch Outside Dia
- Regular price
- €47.54 ex VAT
- Sale price
- €47,54
- Regular price
-
Description
UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
Technical
| Bore d | = | 1-1/2 inch |
| Outer Dia a | = | 4.3307 inch |
| g | = | 1-7/32 inch |
| r | = | 0.098 inch |
| B | = | 1.969 inch |
| Bearing No | = | UK209 |
| HE2309 | = | Housing No |
| C209 | = | N/A |
