SKU: UKC210/HA2310

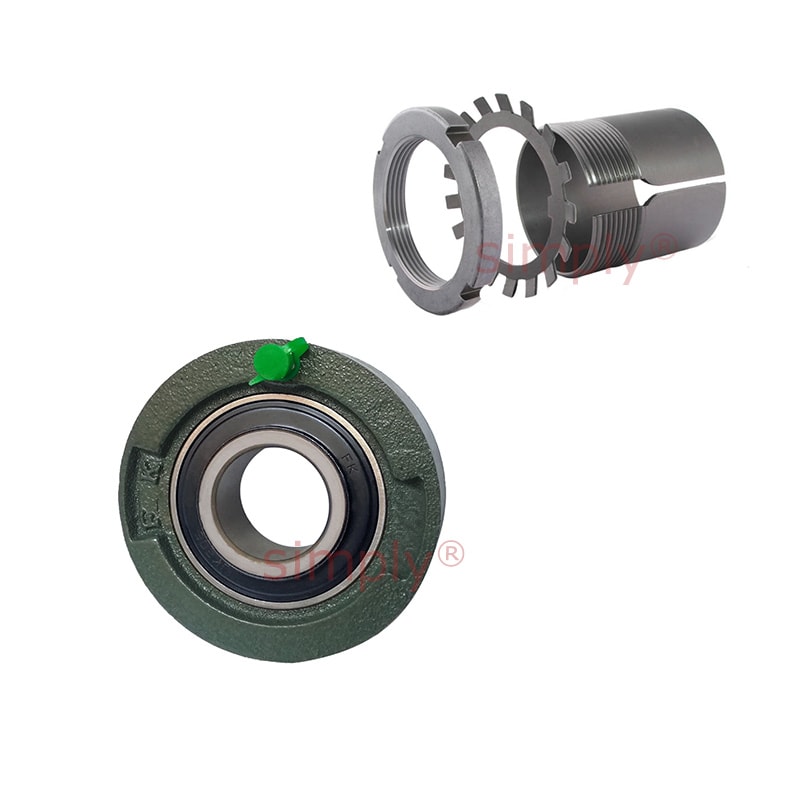

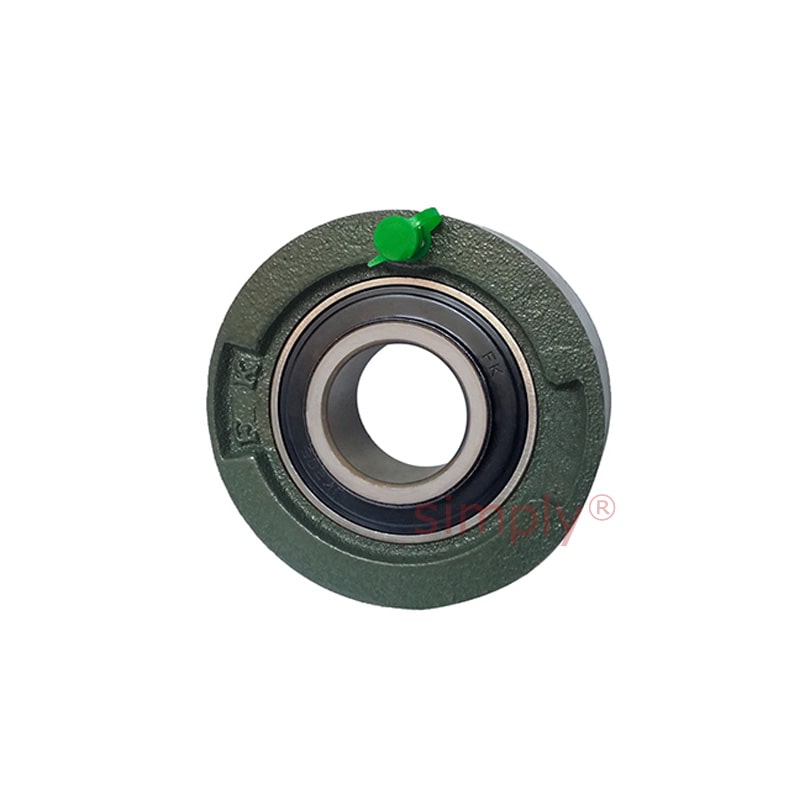

UKC210/HA2310 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 1-11/16 inch Bore Insert 4.7244 inch Outside Dia
- Regular price
- €96.55 ex VAT
- Sale price
- €96,55
- Regular price
-
Quantity Price Breaks
UKC210/HA2310 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 1-11/16 inch Bore Insert 4.7244 inch Outside Dia
- Regular price
- €96.55 ex VAT
- Sale price
- €96,55
- Regular price
-
Description
UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
Technical
| Bore d | = | 1-11/16 inch |
| Outer Dia a | = | 4.7244 inch |
| g | = | 1-19/64 inch |
| r | = | 0.098 inch |
| B | = | 2.165 inch |
| Bearing No | = | UK210 |
| HA2310 | = | Housing No |
| C210 | = | N/A |
