SKU: UKC211/H2311

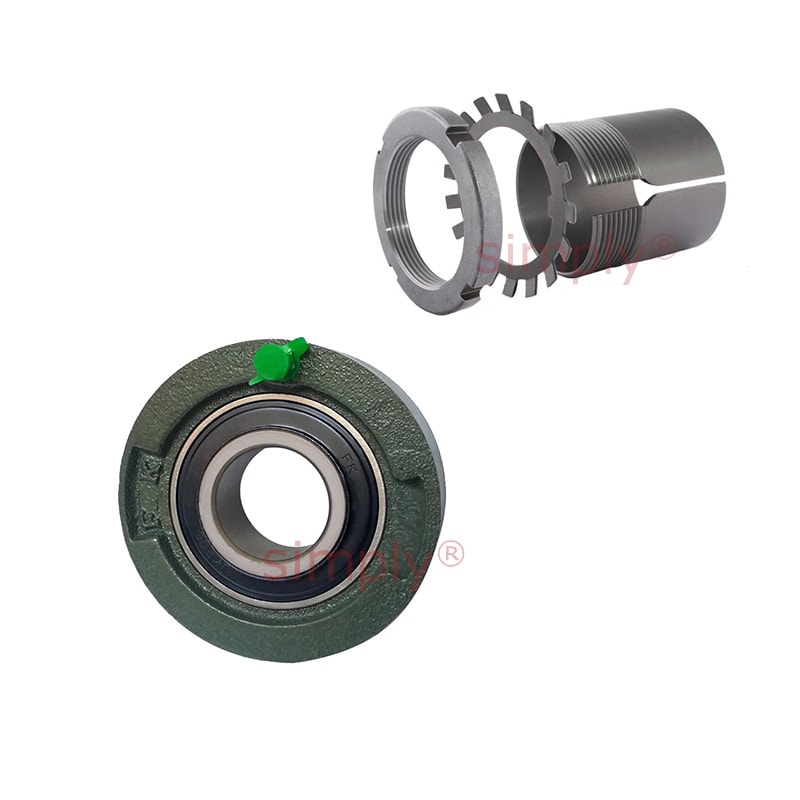

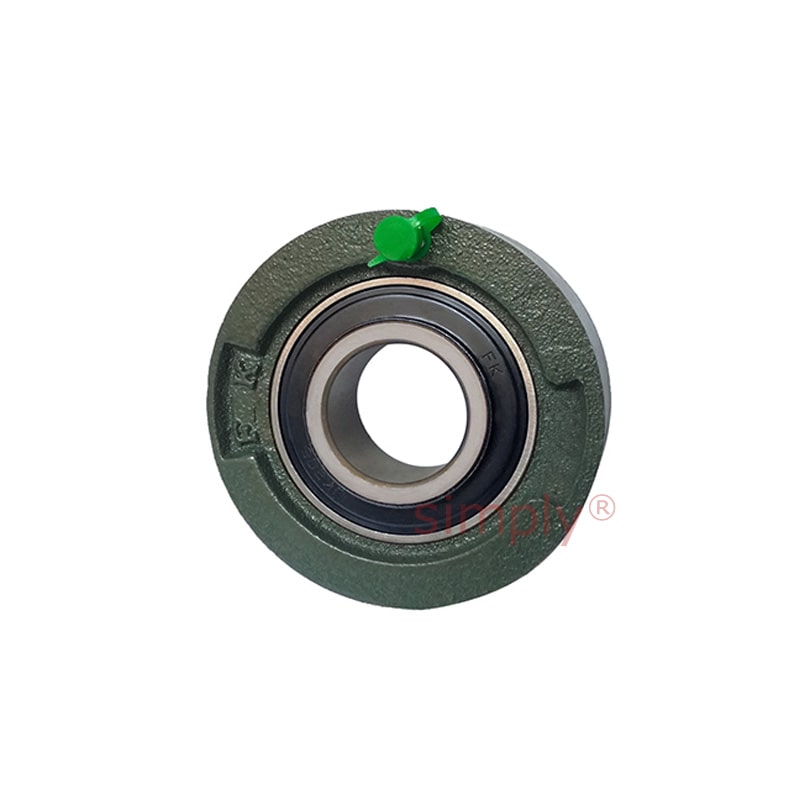

UKC211/H2311 Metric Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 50mm Bore Insert 125mm Outside Dia
- Regular price
- €65.84 ex VAT
- Sale price
- €65,84
- Regular price
-
Not in stock
Quantity Price Breaks
3
€58.60
4
€55.31
9
€54.65
19
€53.99
49
€53.33
99
€52.67
499
€49.38
999
€48.72
1999
€48.06
2999
€47.40
4999
€46.09
SKU:
UKC211/H2311
UKC211/H2311 Metric Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 50mm Bore Insert 125mm Outside Dia
- Regular price
- €65.84 ex VAT
- Sale price
- €65,84
- Regular price
-
Description
UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
Technical
| Bore d | = | 50mm |
| Outer Dia a | = | 125mm |
| g | = | 35mm |
| r | = | 2.5mm |
| B | = | 59mm |
| Bearing No | = | UK211 |
| H2311 | = | Housing No |
| C211 | = | N/A |
