SKU: UKPAE206HCC-SNR
SNR UKPAE206HCC Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Narrow Steel Plate Cover - Closed Version - Insert and Adaptor Sleeve Fits 25mm Shaft - Allow 2-3 Days
- Regular price
- €63.94 ex VAT
- Sale price
- €63,94
- Regular price
-
Not in stock
Quantity Price Breaks
3
€56.91
4
€53.71
9
€53.07
19
€52.43
49
€51.79
99
€51.15
499
€47.96
999
€47.32
1999
€46.68
2999
€46.04
4999
€44.76
SKU:
UKPAE206HCC-SNR
SNR UKPAE206HCC Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Narrow Steel Plate Cover - Closed Version - Insert and Adaptor Sleeve Fits 25mm Shaft - Allow 2-3 Days
- Regular price
- €63.94 ex VAT
- Sale price
- €63,94
- Regular price
-
Description
|

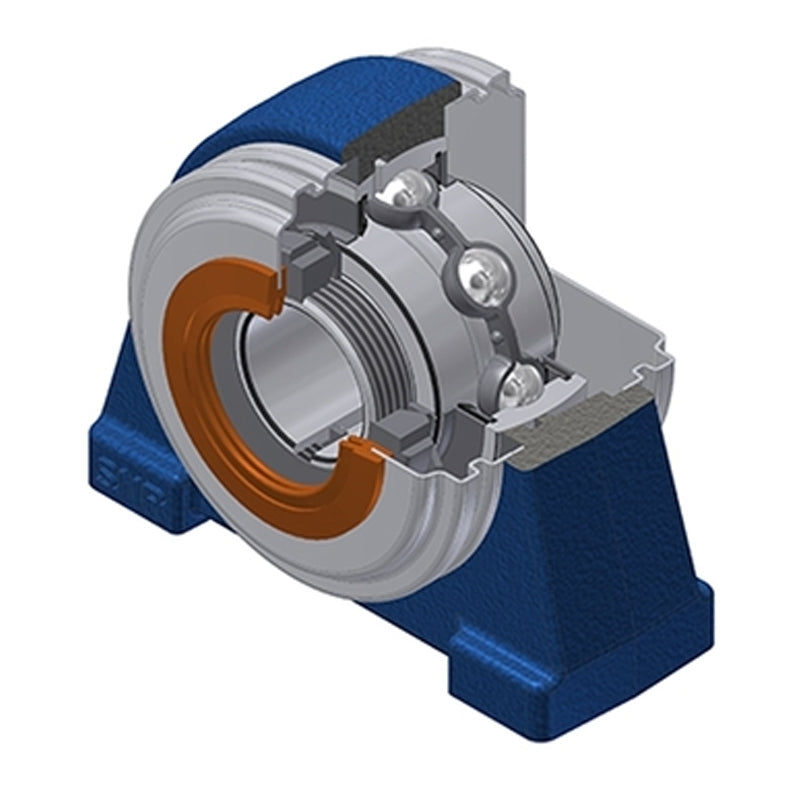

UKPA/UKPAE Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
Technical

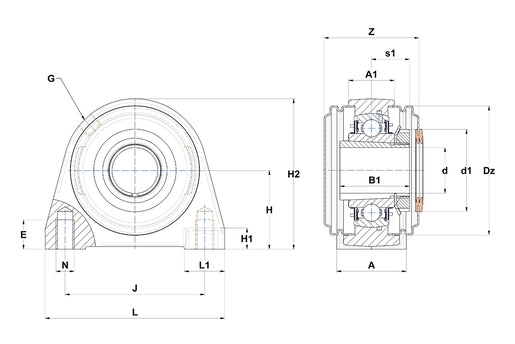

| --- | = | Dimensions |
| Shaft diameter | = | 25mm |
| A | = | 38mm |
| A1 | = | 25mm |
| B | = | 25mm |
| d1 | = | 45mm |
| E | = | 12.5mm |
| H | = | 42.9mm |
| H1 | = | 11mm |
| H2 | = | 82mm |
| J | = | 76.2mm |
| L | = | 98mm |
| L1 | = | 22mm |
| N | = | M10 |
| Dz | = | 70mm |
| Z | = | 52.3mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 19.5 kN |
| Static load C0 | = | 11.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Adaptor sleeve | = | H2306 |
| Mass | = | 1.065 kg |
