SKU: UKT205/H2305

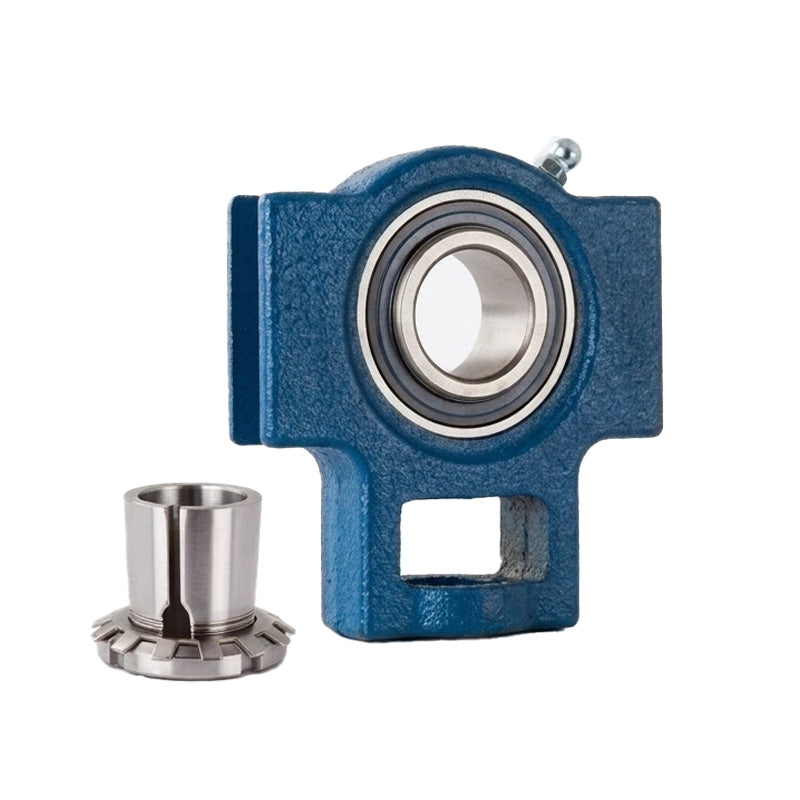

UKT205/H2305 Metric Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 20mm Shaft
UKT205/H2305 Metric Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 20mm Shaft
Regular price
€30,50
ex VAT
Regular price
Sale price
€30,50
ex VAT
In stock
Price Break
3+
€23,17
4+
€21,87
9+
€21,61
19+
€21,35
49+
€21,09
99+
€20,83
499+
€19,53
999+
€19,27
1999+
€19,01
2999+
€18,75
4999+
€18,23
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Style:
- UKT
Technical
Technical
| d | 20mm |
|---|---|
| o | 16mm |
| g | 10mm |
| p | 51mm |
| q | 32mm |
| s | 19mm |
| b | 51mm |
| k | 12mm |
| e | 76mm |
| a | 89mm |
| w | 97mm |
| j | 32mm |
| l | 24mm |
| h | 62mm |
| t | 48mm |
| B1 | 35mm |
| Bearing no | UK205;H2305 |
| Housing no | T205 |
| Weight | 0.86 kg |
