SKU: UKT206/HS2306

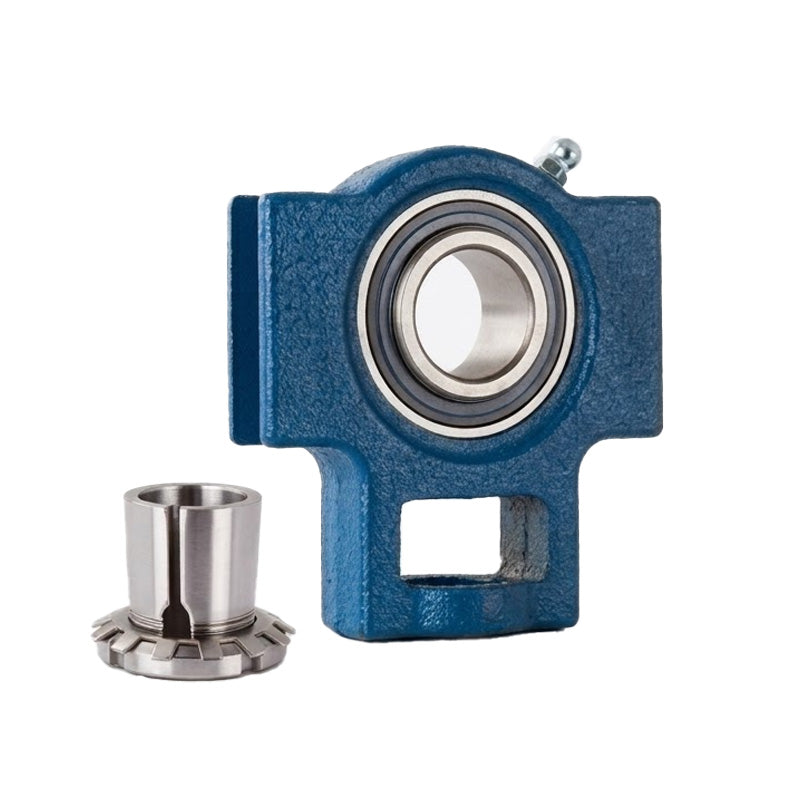

UKT206/HS2306 Imperial Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 7/8 inch Shaft
UKT206/HS2306 Imperial Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 7/8 inch Shaft
Regular price
€53,03
ex VAT
Regular price
Sale price
€53,03
ex VAT
In stock
Price Break
3+
€40,30
4+
€38,04
9+
€37,58
19+
€37,13
49+
€36,68
99+
€36,23
499+
€33,96
999+
€33,51
1999+
€33,06
2999+
€32,60
4999+
€31,70
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Style:
- UKT

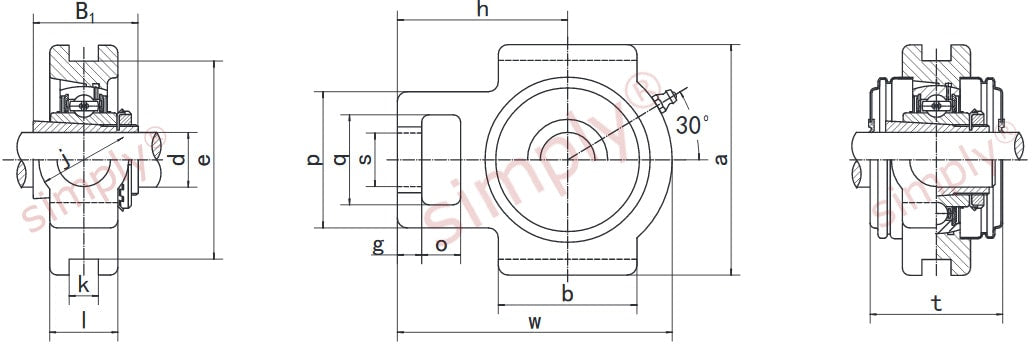

Technical
Technical
| d | 7/8 inch |
|---|---|
| o | 5/8 inch |
| g | 25/64 inch |
| p | 2-7/32 inch |
| q | 1-29/64 inch |
| s | 55/64 inch |
| b | 2-1/4 inch |
| k | 15/32 inch |
| e | 3-1/2 inch |
| a | 4-1/64 inch |
| w | 4-29/64 inch |
| j | 1-29/64 inch |
| l | 1-3/32 inch |
| h | 2-3/4 inch |
| t | 2-3/32 inch |
| B1 | 1.496 inch |
| Bearing no | UK206;HS2306 |
| Housing no | T206 |
| Weight | 1.26 kg |
