SKU: UKT208/HE2308

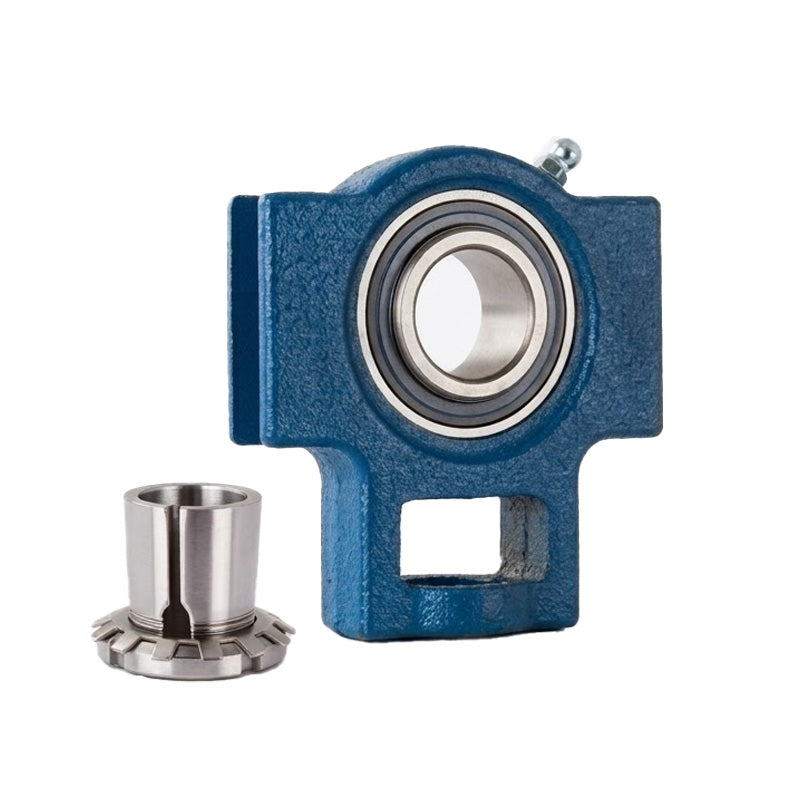

UKT208/HE2308 Imperial Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 1-1/4 inch Shaft
UKT208/HE2308 Imperial Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 1-1/4 inch Shaft
Regular price
€61,18
ex VAT
Regular price
Sale price
€61,18
ex VAT
In stock
Price Break
3+
€46,49
4+
€43,88
9+
€43,36
19+
€42,83
49+
€42,31
99+
€41,79
499+
€39,18
999+
€38,65
1999+
€38,13
2999+
€37,61
4999+
€36,57
Quantity
Couldn't load pickup availability
Description
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- UKT
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| o | 3/4 inch |
| g | 5/8 inch |
| p | 3-17/64 inch |
| q | 1-15/16 inch |
| s | 1-9/64 inch |
| b | 3-17/64 inch |
| k | 5/8 inch |
| e | 4-1/64 inch |
| a | 4-31/64 inch |
| w | 5-43/64 inch |
| j | 1-15/16 inch |
| l | 1-5/16 inch |
| h | 3-1/2 inch |
| t | 2-23/32 inch |
| B1 | 1.811 inch |
| Bearing no | UK208;HE2308 |
| Housing no | T208 |
| Weight | 2.5 kg |
