SKU: UKT210/HE2310

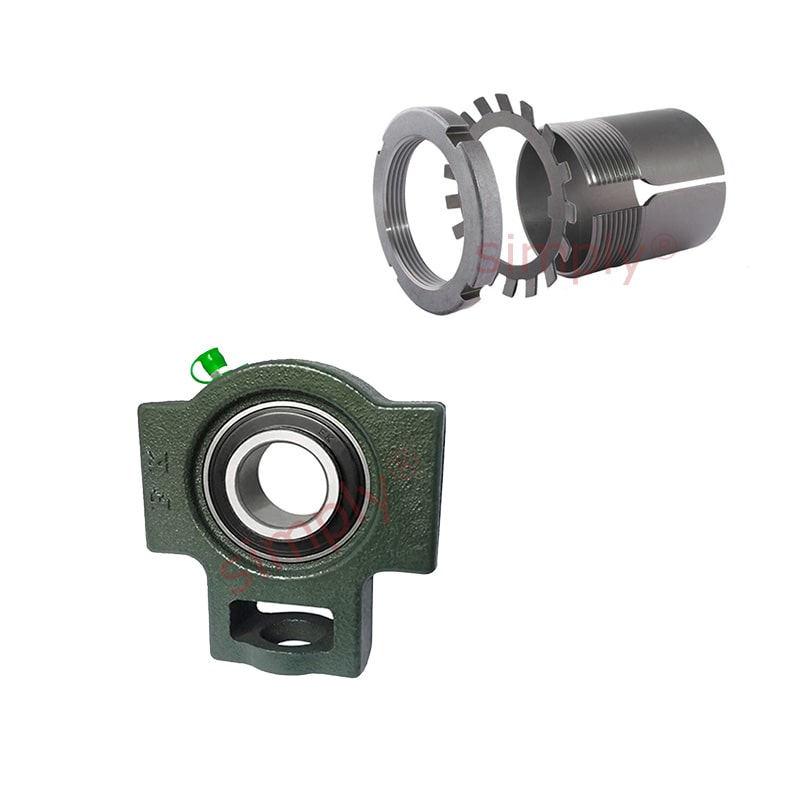

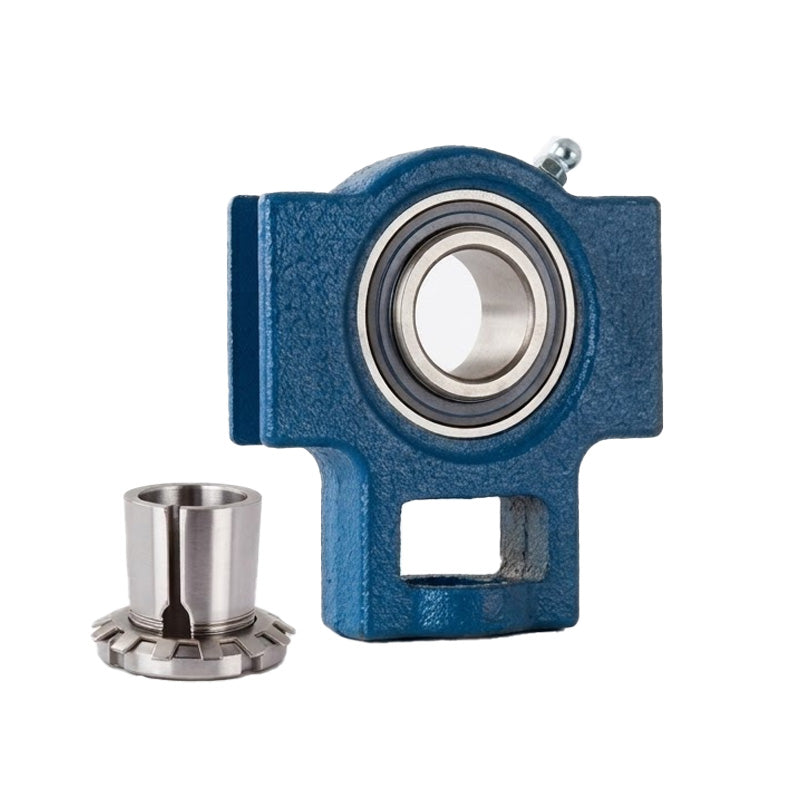

UKT210/HE2310 Imperial Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 1-3/4 inch Shaft
UKT210/HE2310 Imperial Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 1-3/4 inch Shaft
Regular price
€85,22
ex VAT
Regular price
Sale price
€85,22
ex VAT
In stock
Price Break
3+
€64,77
4+
€61,13
9+
€60,40
19+
€59,68
49+
€58,95
99+
€58,22
499+
€54,58
999+
€53,85
1999+
€53,13
2999+
€52,40
4999+
€50,94
Quantity
Couldn't load pickup availability
Description
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Style:
- UKT
Technical
Technical
| d | 1-3/4 inch |
|---|---|
| o | 3/4 inch |
| g | 5/8 inch |
| p | 3-17/64 inch |
| q | 1-15/16 inch |
| s | 1-9/64 inch |
| b | 3-25/64 inch |
| k | 5/8 inch |
| e | 4-1/64 inch |
| a | 4-39/64 inch |
| w | 5-55/64 inch |
| j | 1-15/16 inch |
| l | 1-15/32 inch |
| h | 3-35/64 inch |
| t | 2-15/16 inch |
| B1 | 2.165 inch |
| Bearing no | UK210;HE2310 |
| Housing no | T210 |
| Weight | 2.6 kg |
