SKU: UKT210HCC-SNR

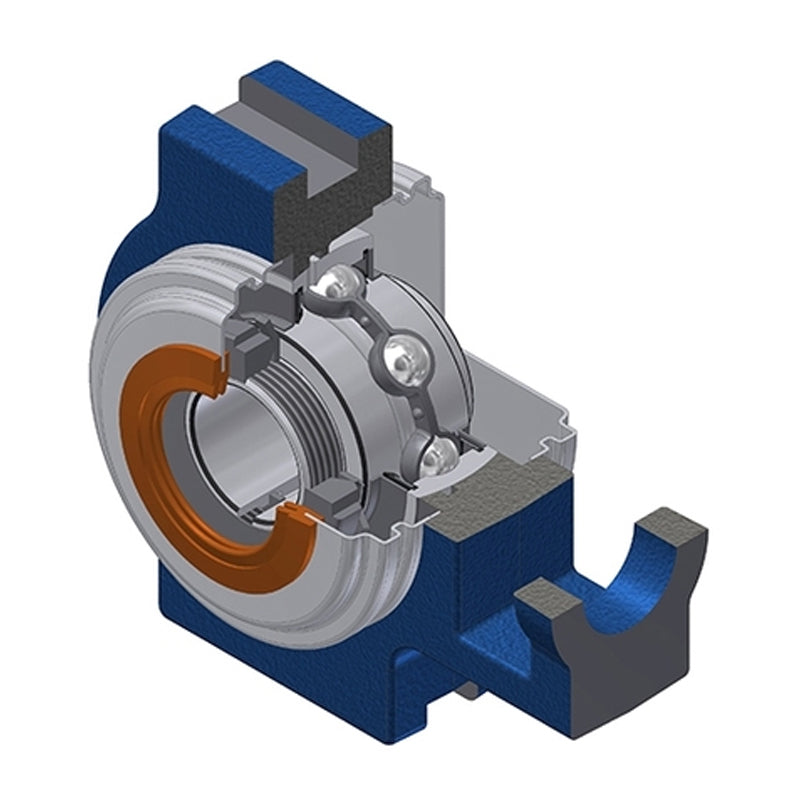

SNR UKT210HCC Metric Cast Iron Take Up Unit Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 45mm Shaft - Closed Version - Allow 2-3 Days
- Regular price
- €80.71 ex VAT
- Sale price
- €80,71
- Regular price
-
Not in stock
Quantity Price Breaks
3
€71.83
4
€67.80
9
€66.99
19
€66.18
49
€65.38
99
€64.57
499
€60.53
999
€59.73
1999
€58.92
2999
€58.11
4999
€56.50
SKU:
UKT210HCC-SNR
SNR UKT210HCC Metric Cast Iron Take Up Unit Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 45mm Shaft - Closed Version - Allow 2-3 Days
- Regular price
- €80.71 ex VAT
- Sale price
- €80,71
- Regular price
-
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
Technical

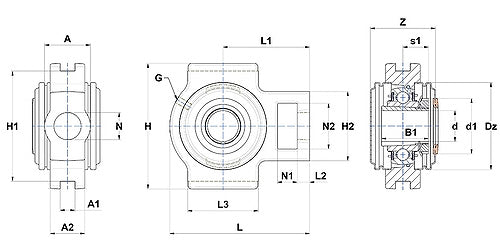

| --- | = | Dimensions |
| Shaft diameter d | = | 45mm |
| A | = | 49mm |
| A1 | = | 16mm |
| A2 | = | 37mm |
| B1 | = | 55mm |
| d1 | = | 70mm |
| H | = | 117mm |
| H1 | = | 102mm |
| H2 | = | 83mm |
| L | = | 149mm |
| L1 | = | 90mm |
| L2 | = | 16mm |
| L3 | = | 86mm |
| N | = | 29mm |
| N1 | = | 19mm |
| N2 | = | 49mm |
| Dz | = | 100mm |
| Z | = | 74.6mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 35.1 kN |
| Static load C0 | = | 23.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Adapter sleeve | = | H2310 |
| Mass | = | 2.752 kg |
